Technical description

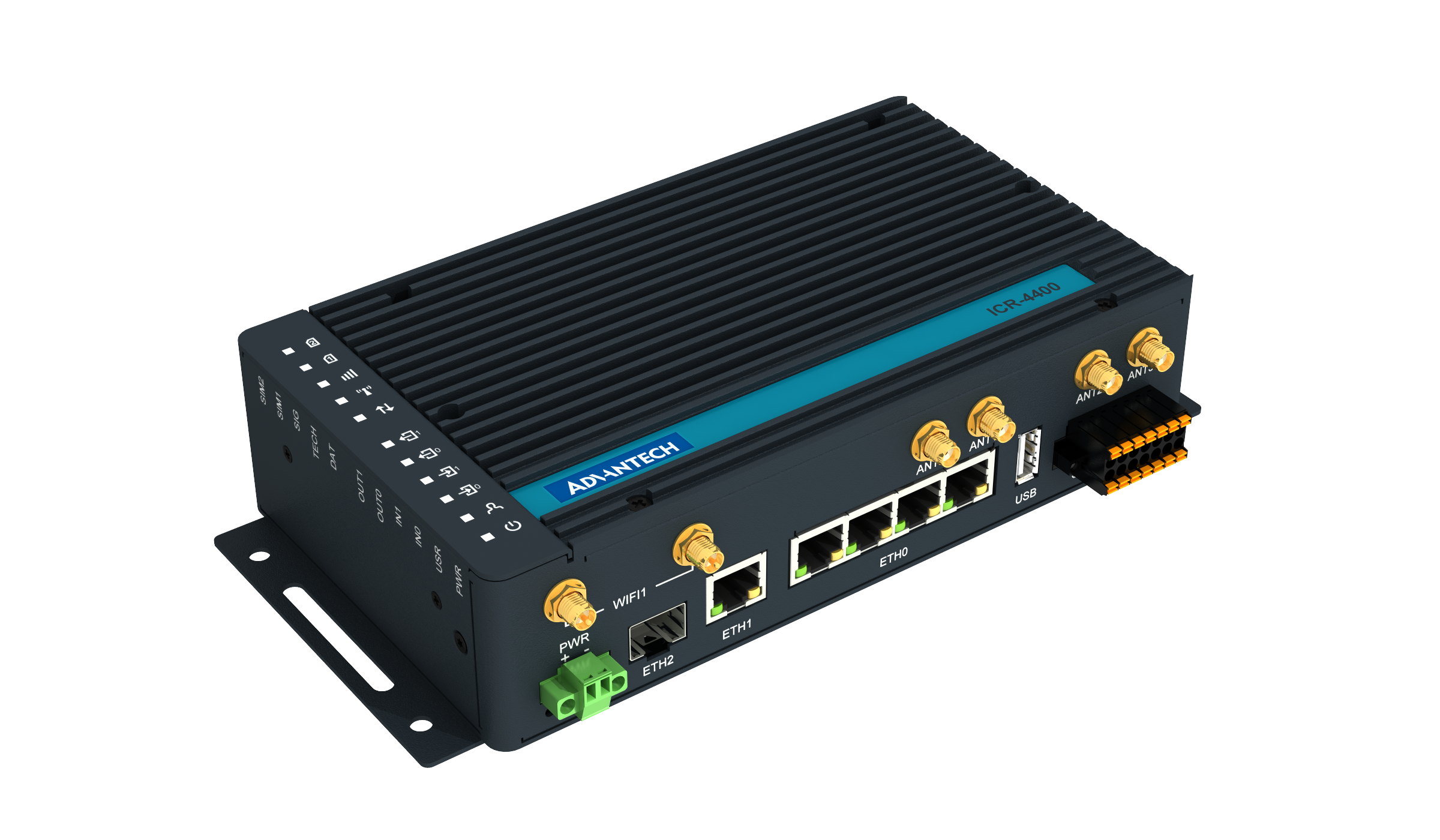

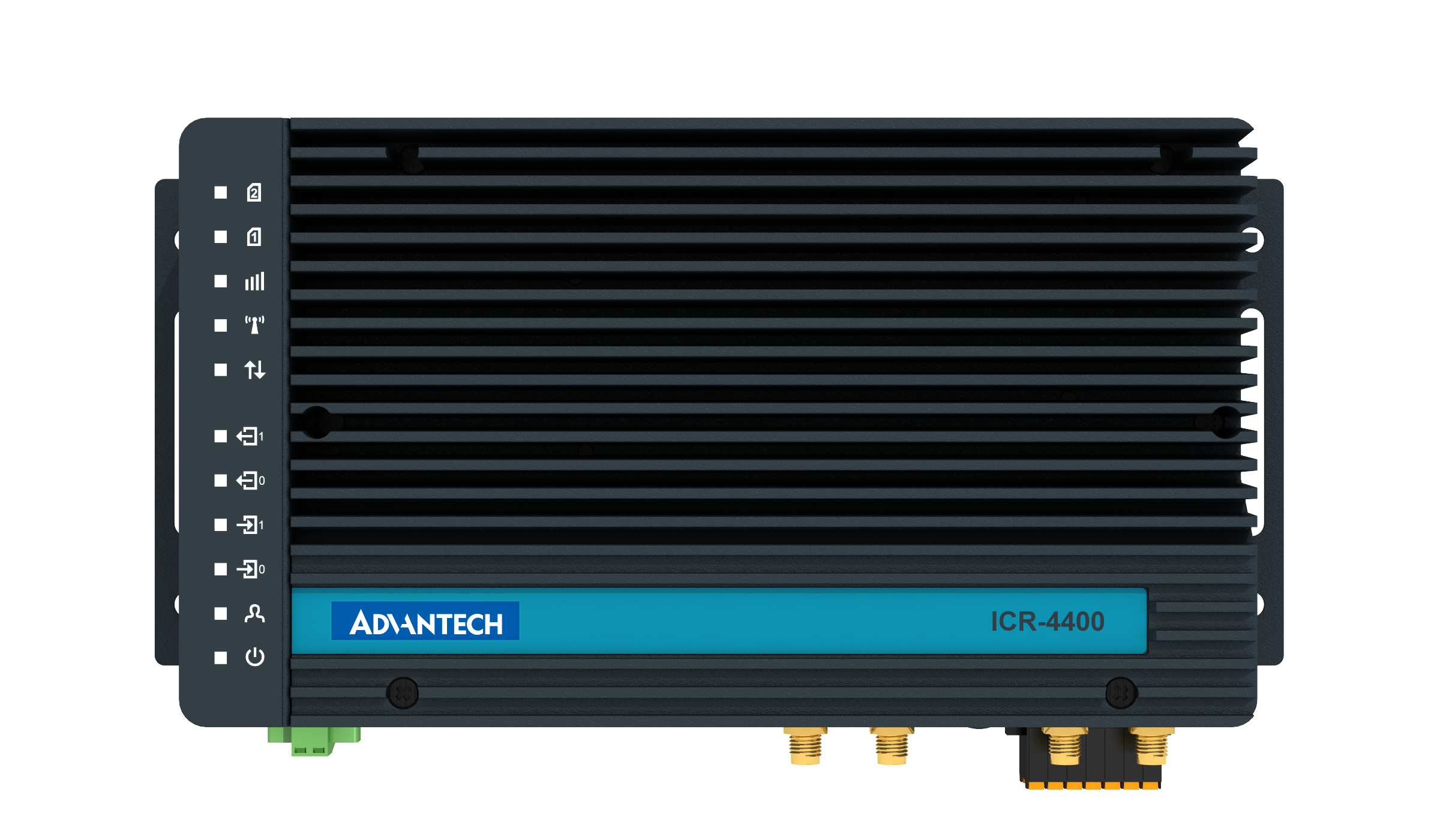

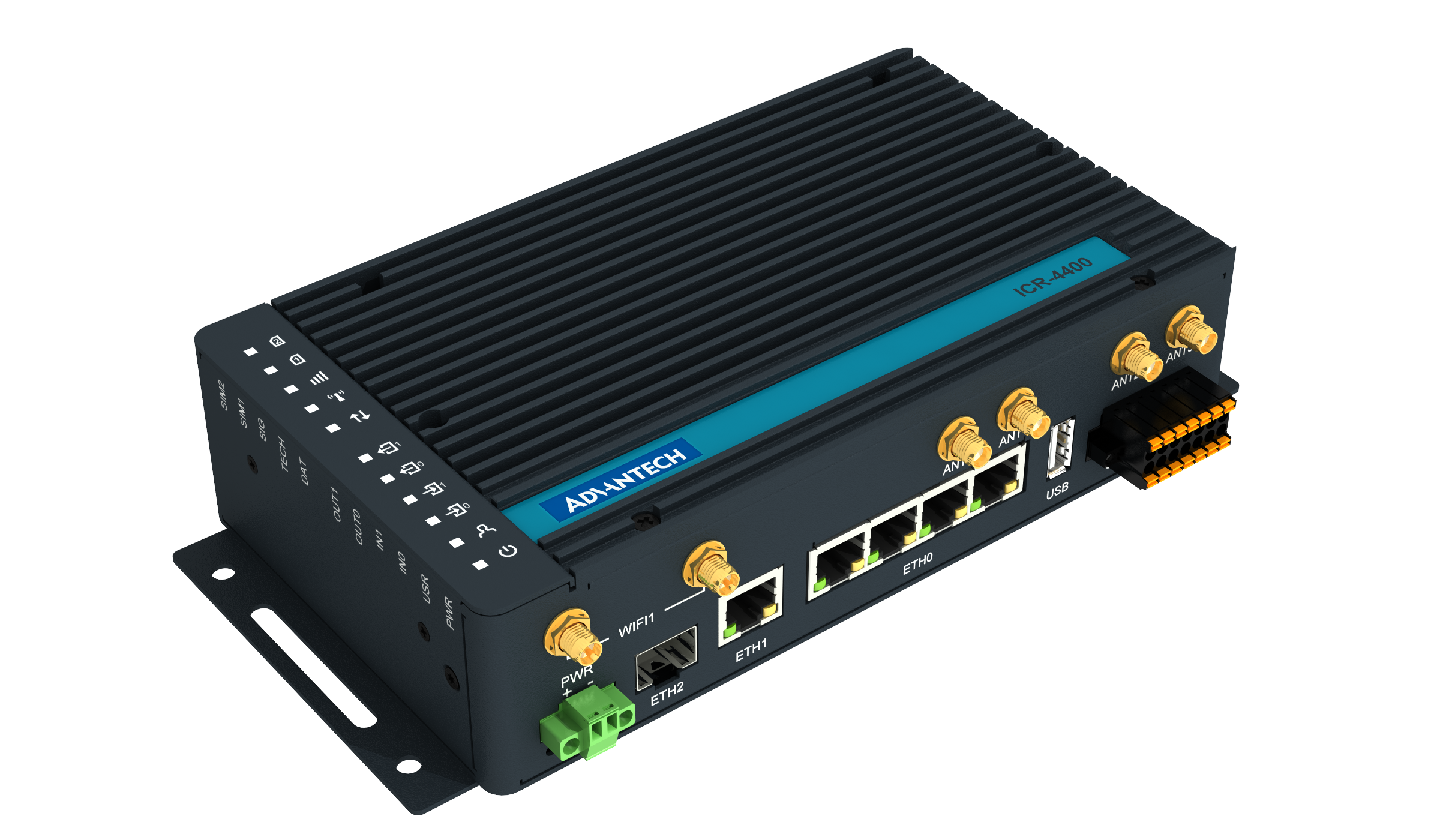

The ICR-4461 is an Ultra-high-speed 5G NR (New Radio) Router & Powerful Edge Computing Gateway focused on the global market. The 5G „gigabit“ speed and low latency, and high network availability is a real step to massive IoT and Enhanced mobile broadband (eMBB) applications - Mobile Internet access, Camera and security systems, Industrial systems, and many other high data demand applications. The router supports fallback via LTE (LTE-A Pro) and 3G networks for areas where 5G coverage is not yet developed.
The new router platform “v4” provides intelligence at the network edge with an extremely powerful Cortex A72 CPU at 1200 MHz, 4 GB eMMC memory, 4 MB flash memory, and 1024 MB RAM. The focus on high security underlines using TPM 2.0, and the Tamper Button ensures safe use in industrial systems.
The ICR-4461 is powered by the ICR-OS Linux operating system that provides a wide range of enhanced networking features. A secure Web interface allows users to configure and manage routers from remote locations. The router supports multiple configuration profiles, automatic firmware updates, etc. The router can be used as a powerful edge computing gateway because of its support for many ways of software customization. Users may insert Linux scripts and add new features by using additional applications called Router Apps.
There is an existing free library of Router Apps, or the user may create their own app using the Advantech SDK. The gateway can easily run applications like Node-RED or Docker that open the way to a multi-container world.

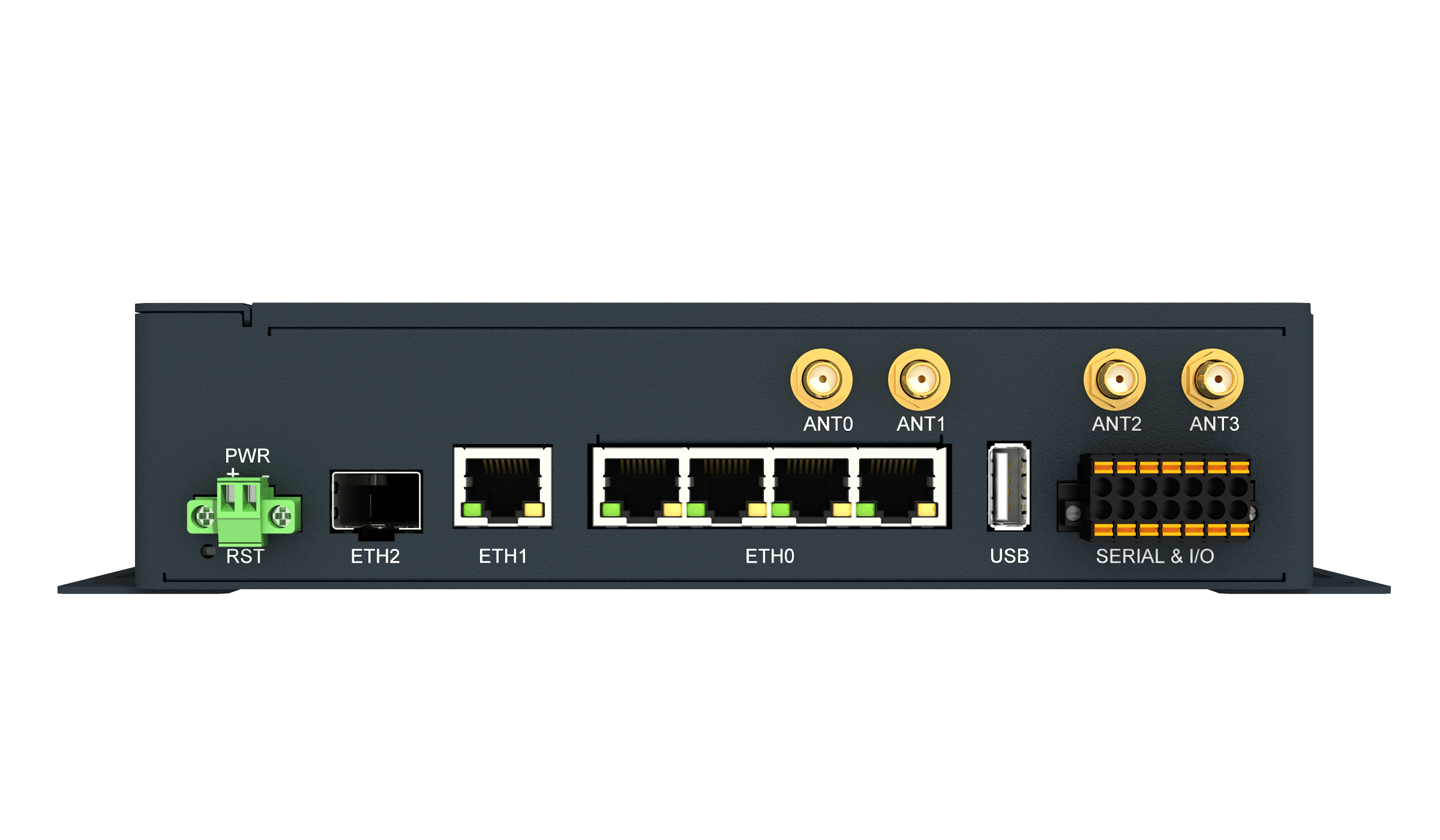

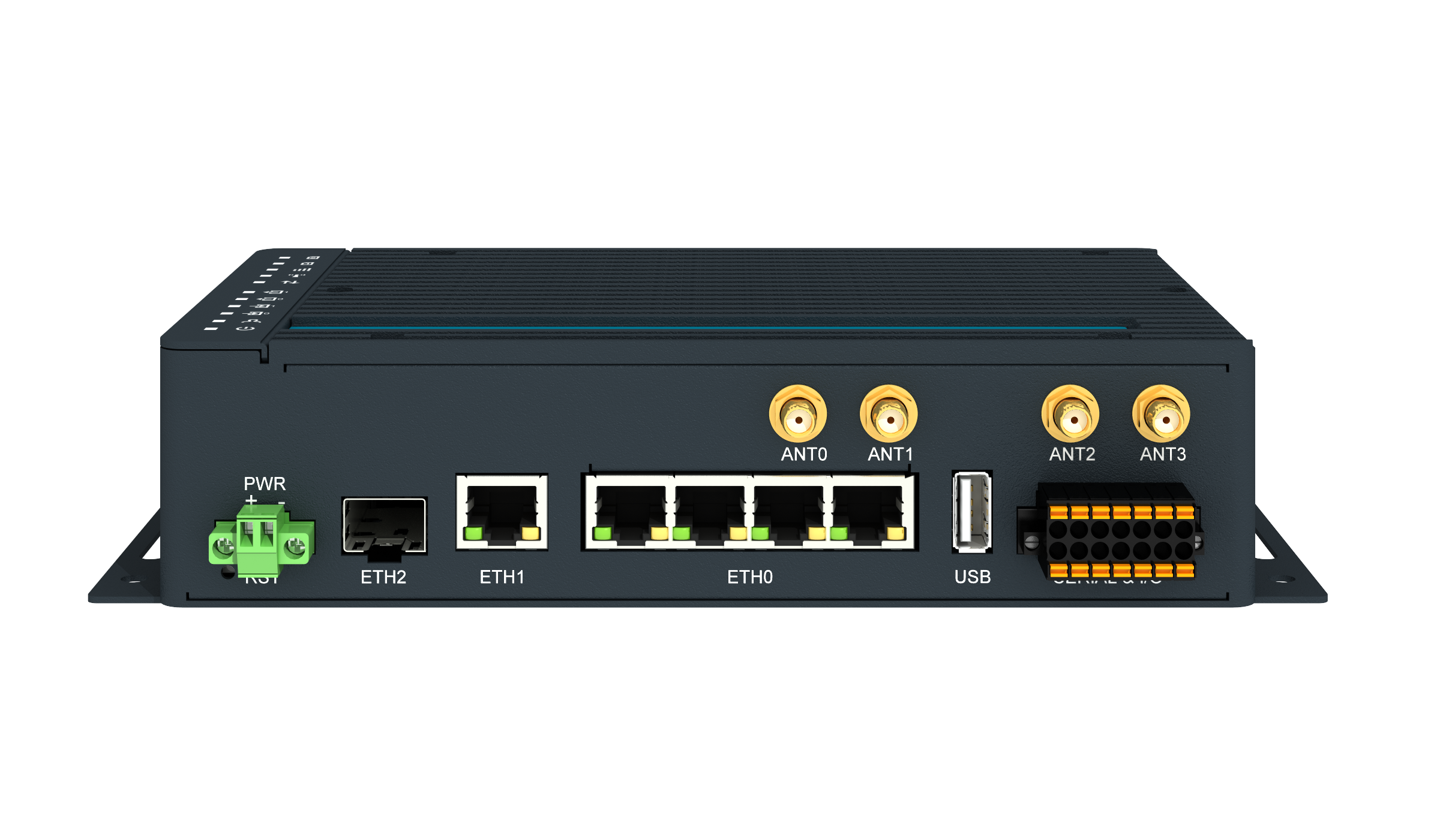

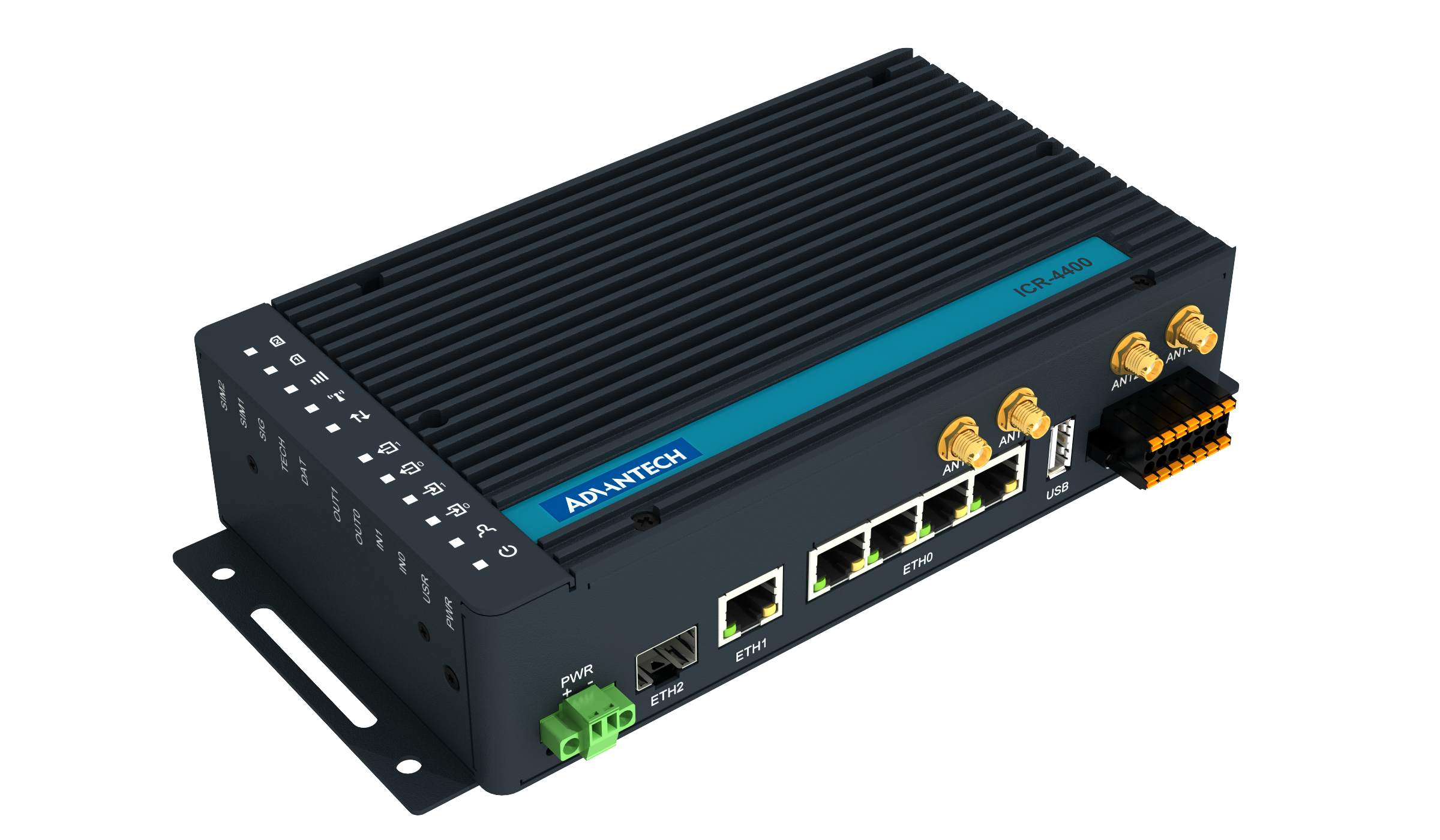

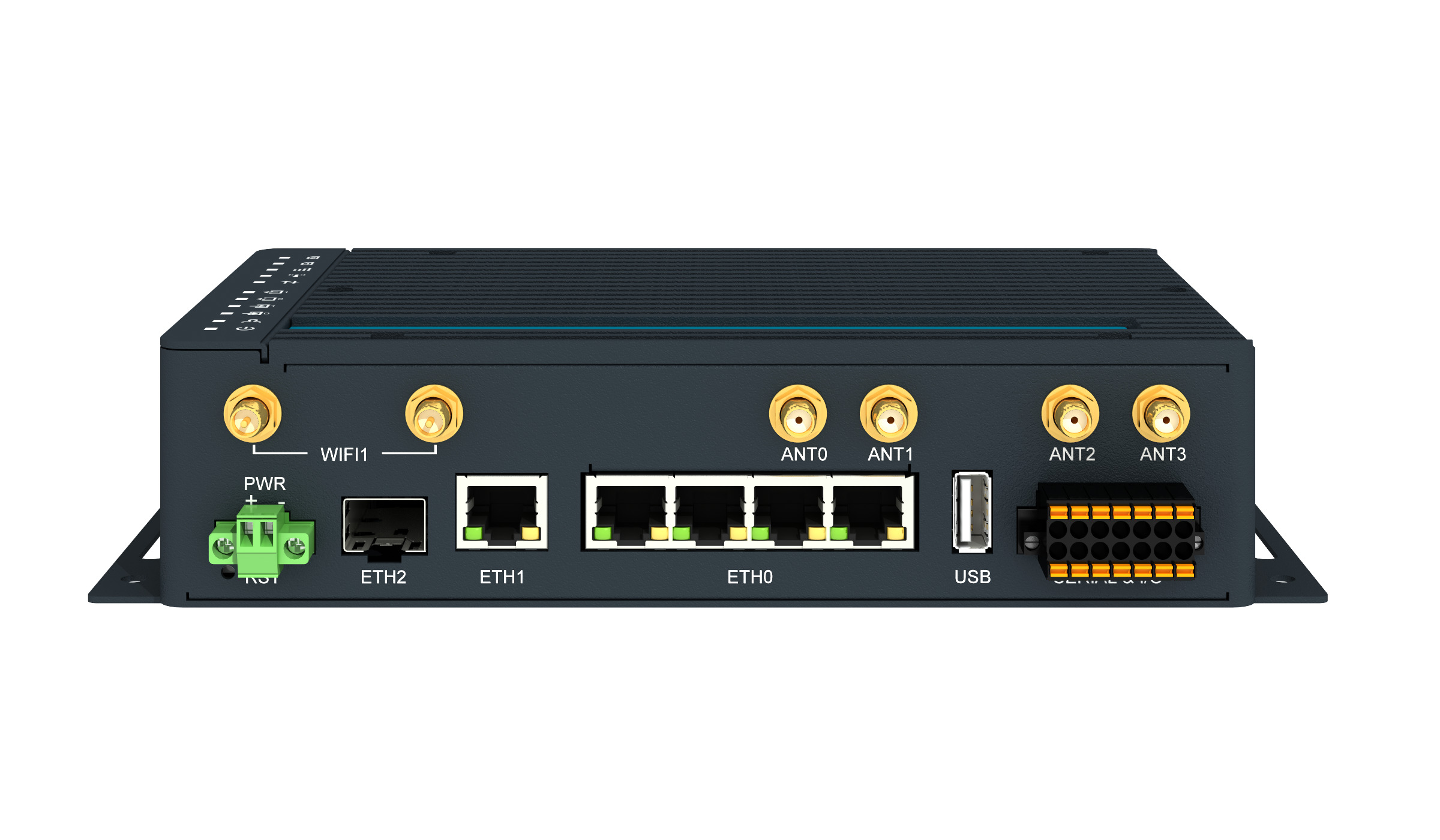

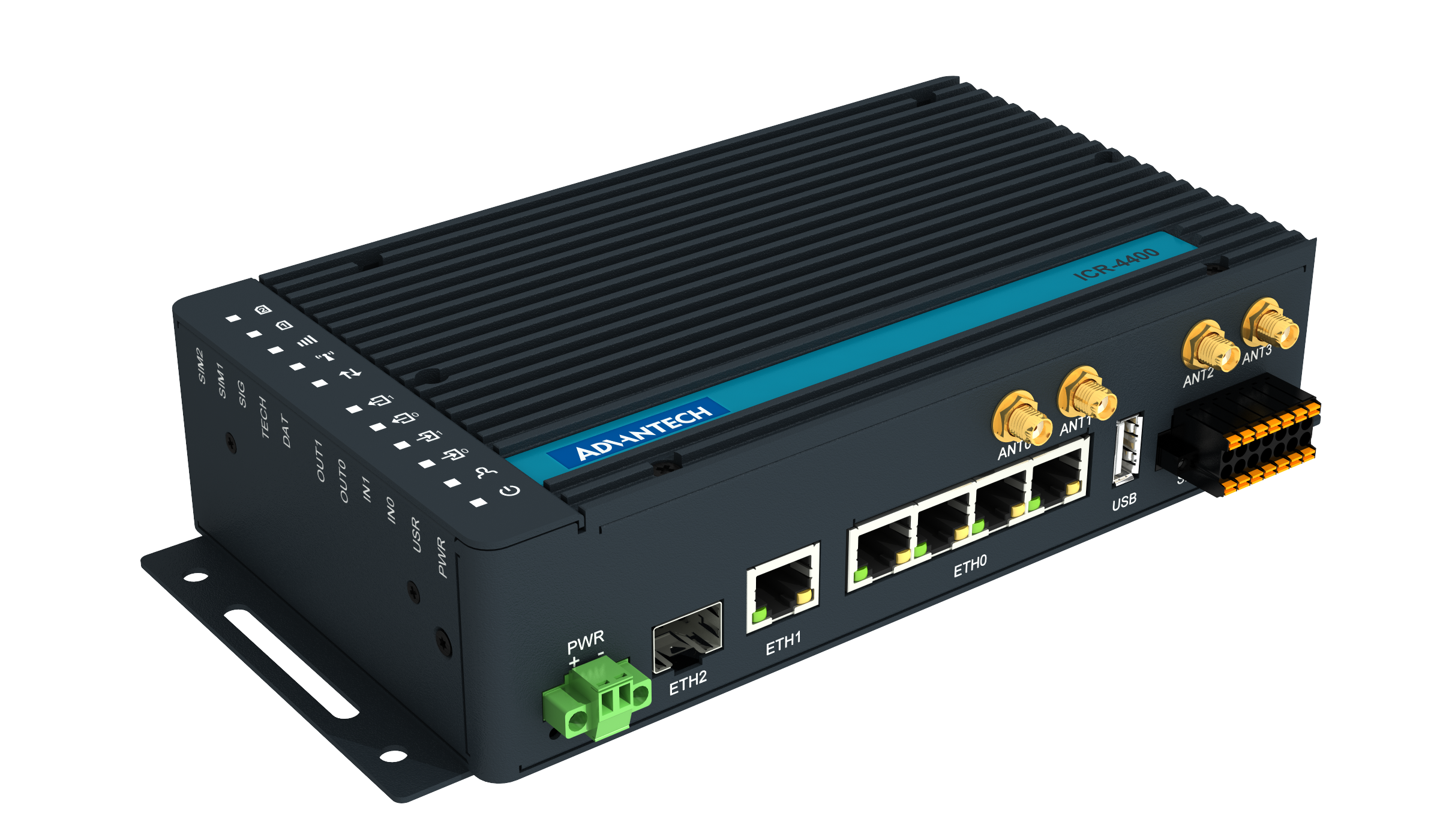

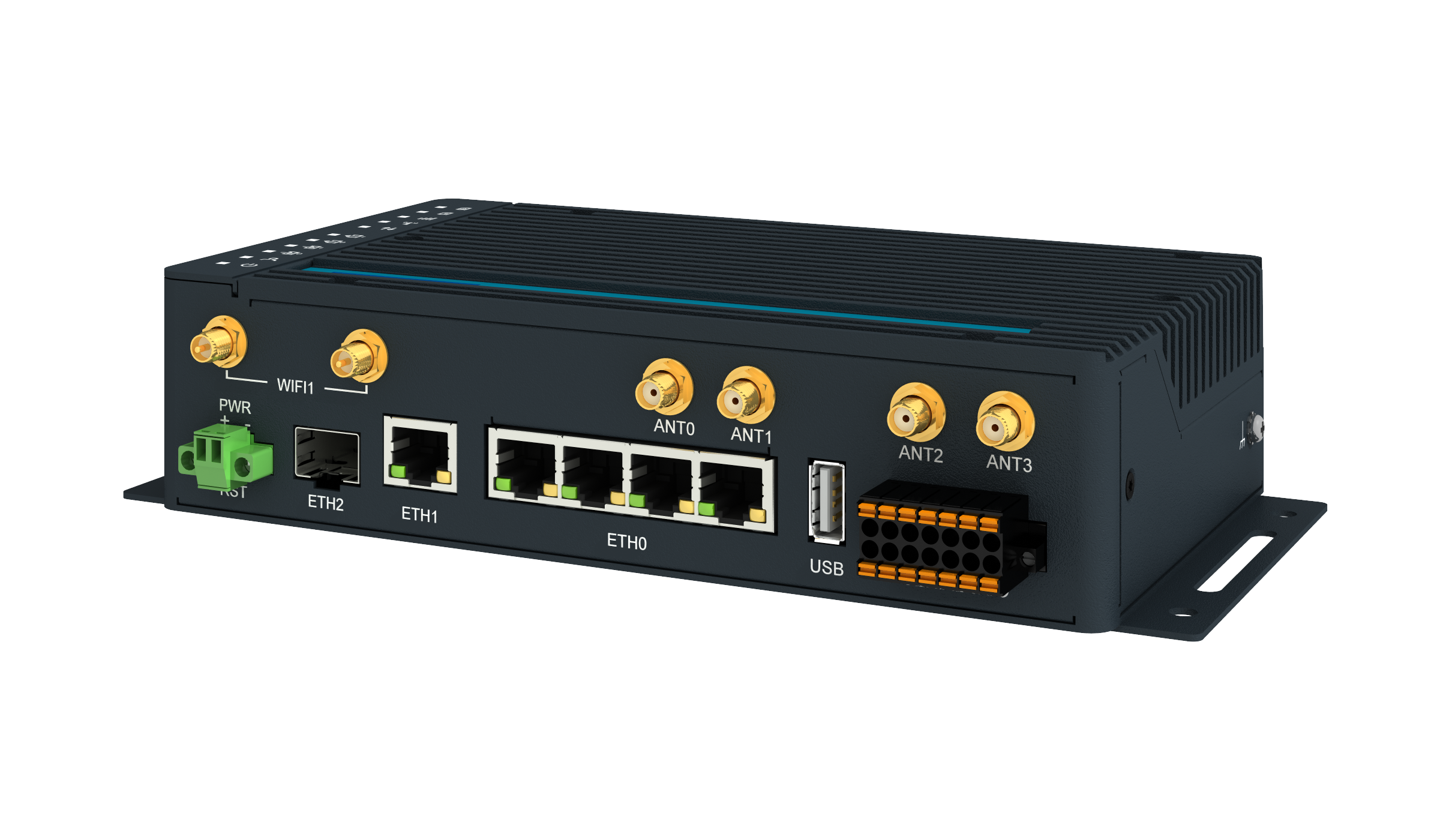

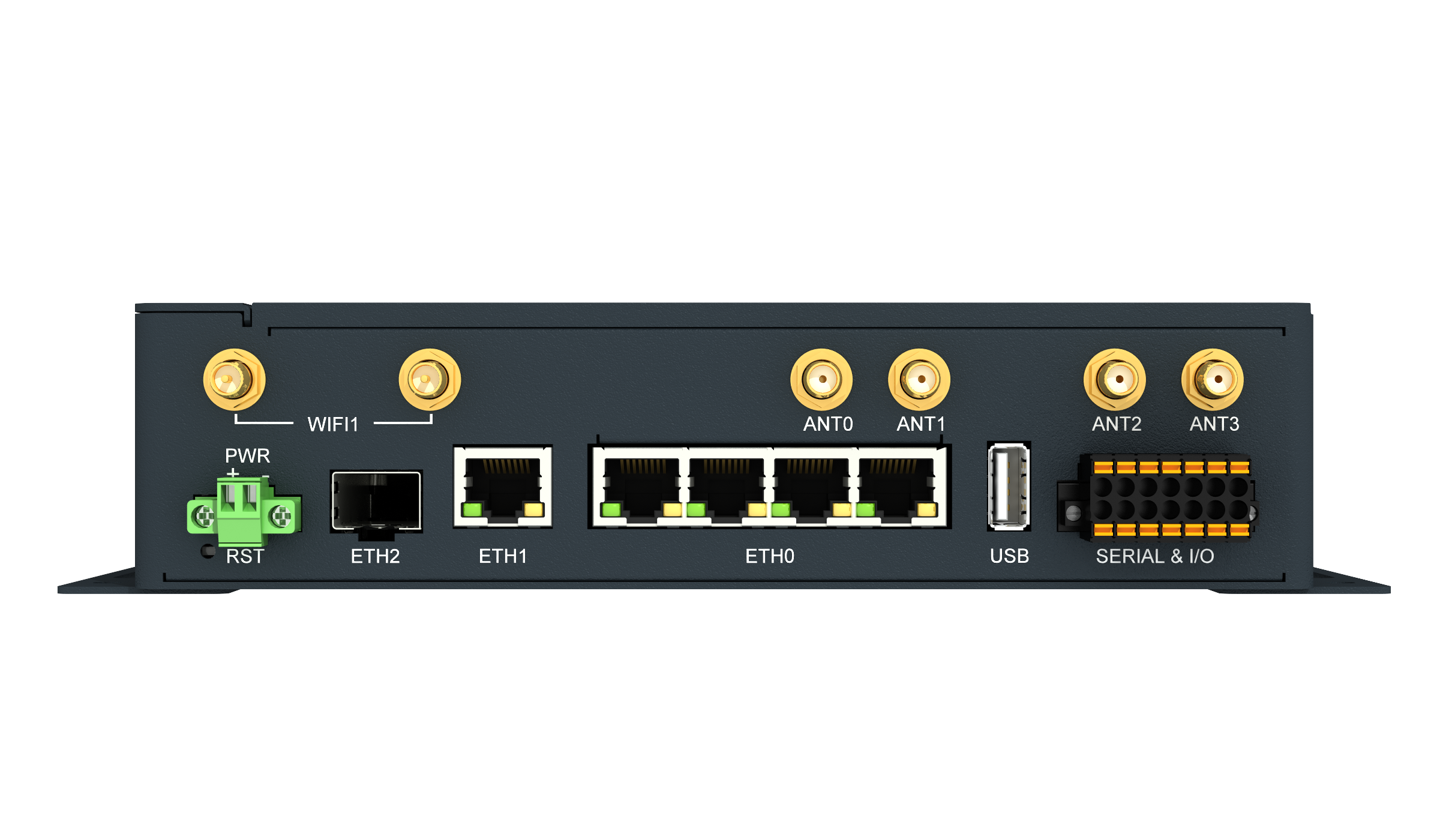

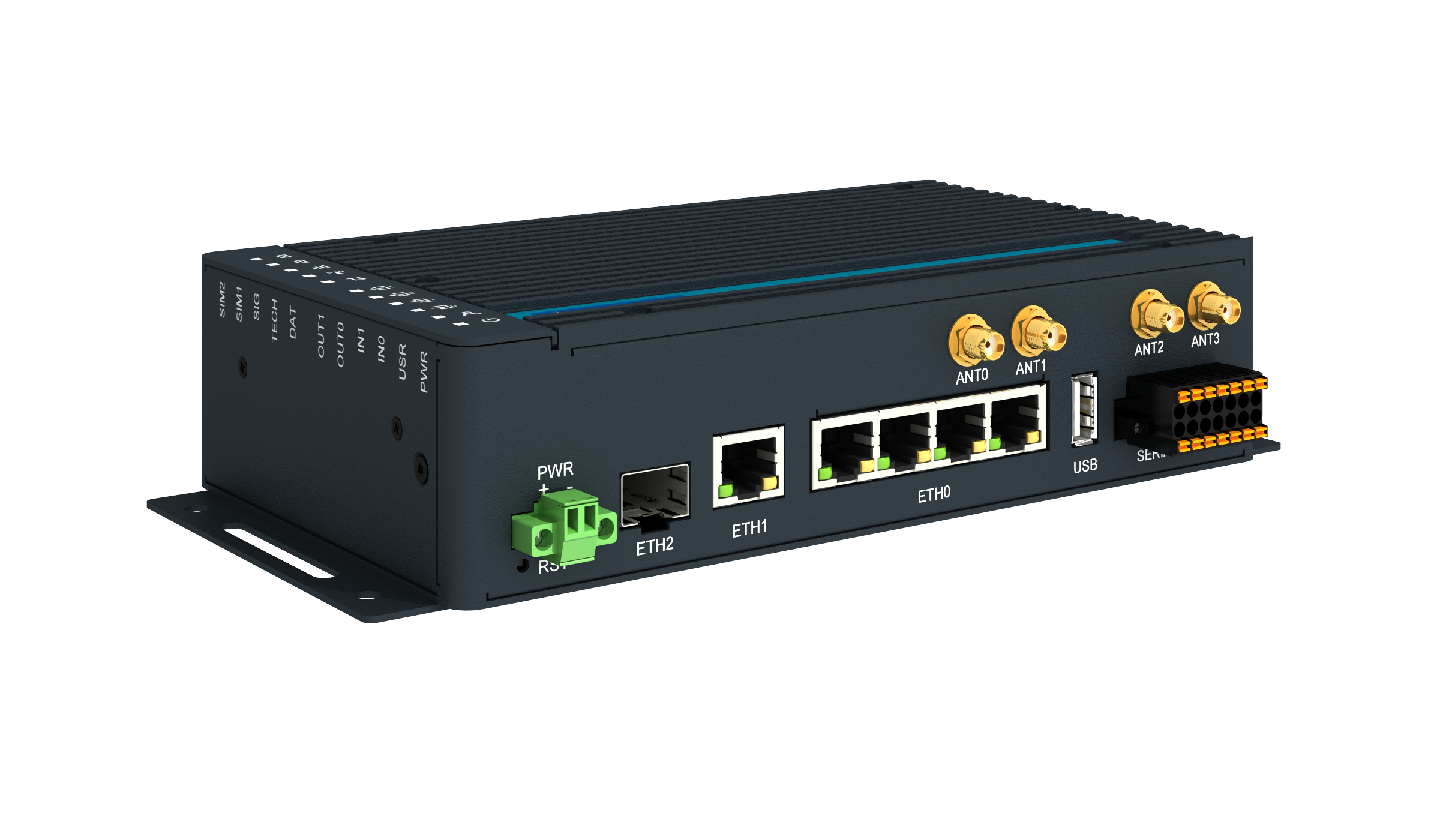

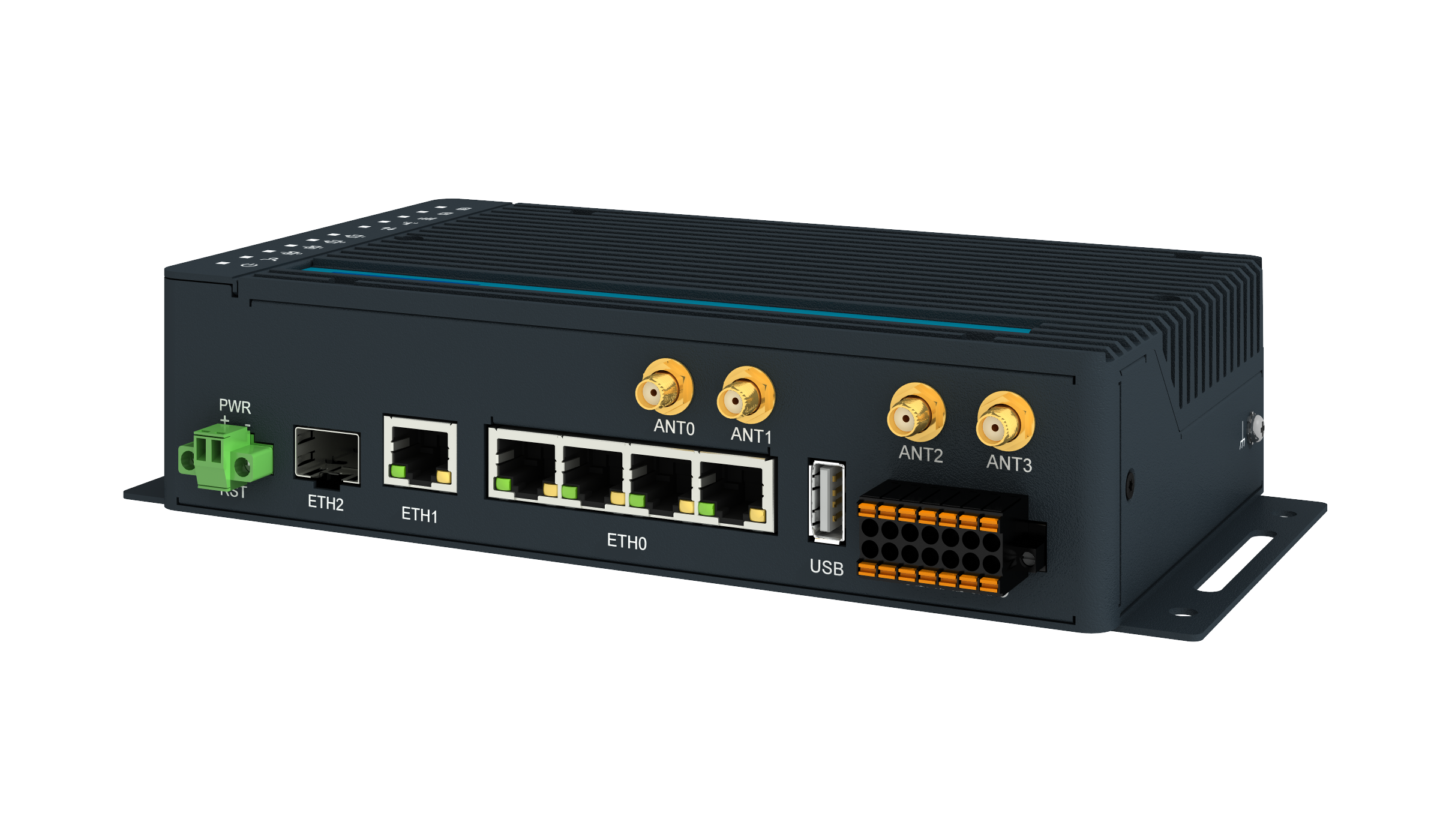

The ICR-4461 is designed and manufactured for use in tough environmental conditions. Specifications include a wide operating temperature range from -40 up to +75 °C. It accepts input voltage range from 9 V DC to 48 V DC and is equipped with a sleep mode for reducing electrical consumption. As a standard, ICR-4461 is equipped with five Ethernet 10/100/1000 Mbps (1× independent and 4× switch), SFP cage (independent port), one USB host 2.0, a microSD reader, serial lines RS232 and RS485, CAN Bus, two binary inputs, and two binary outputs.

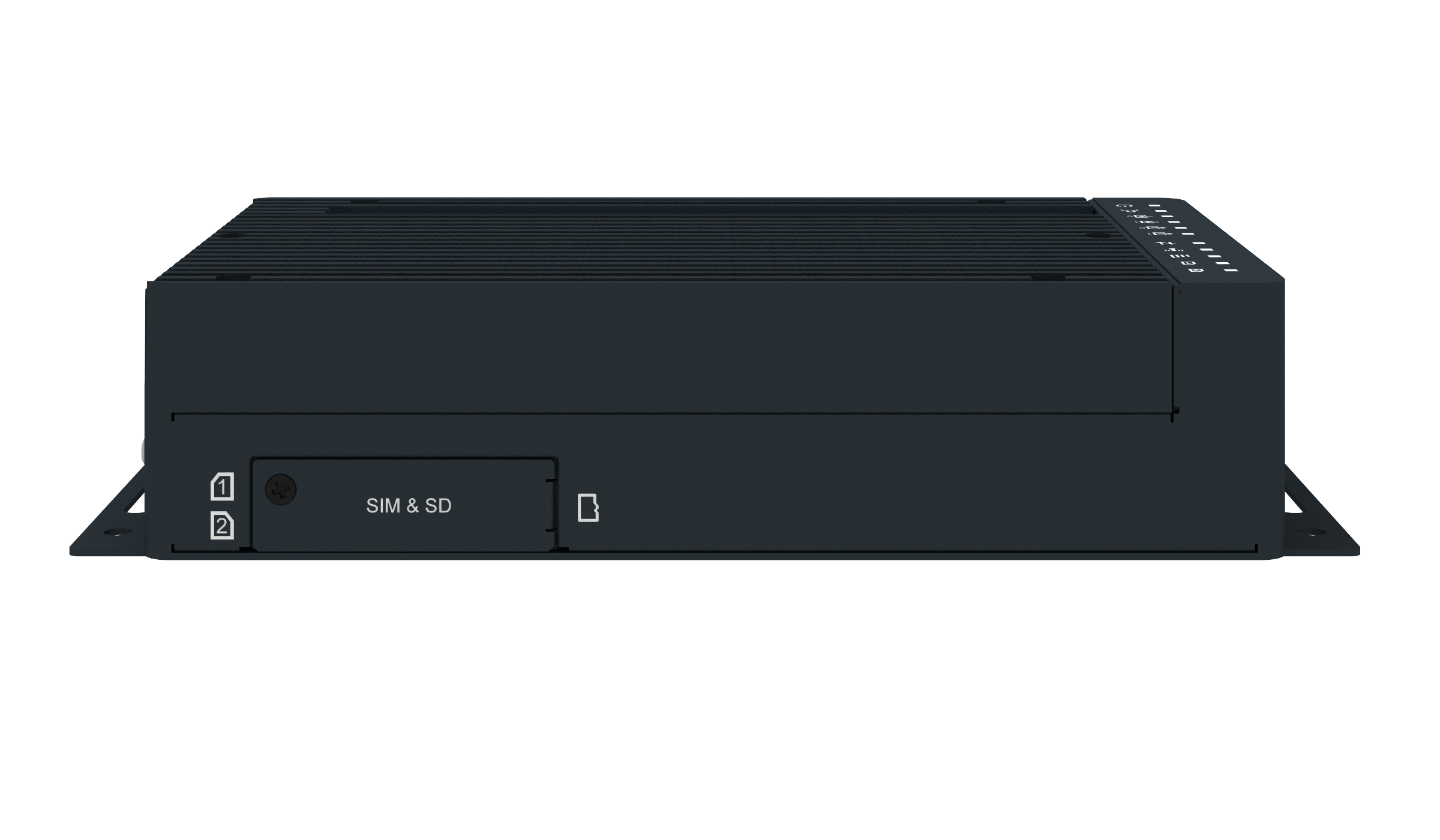

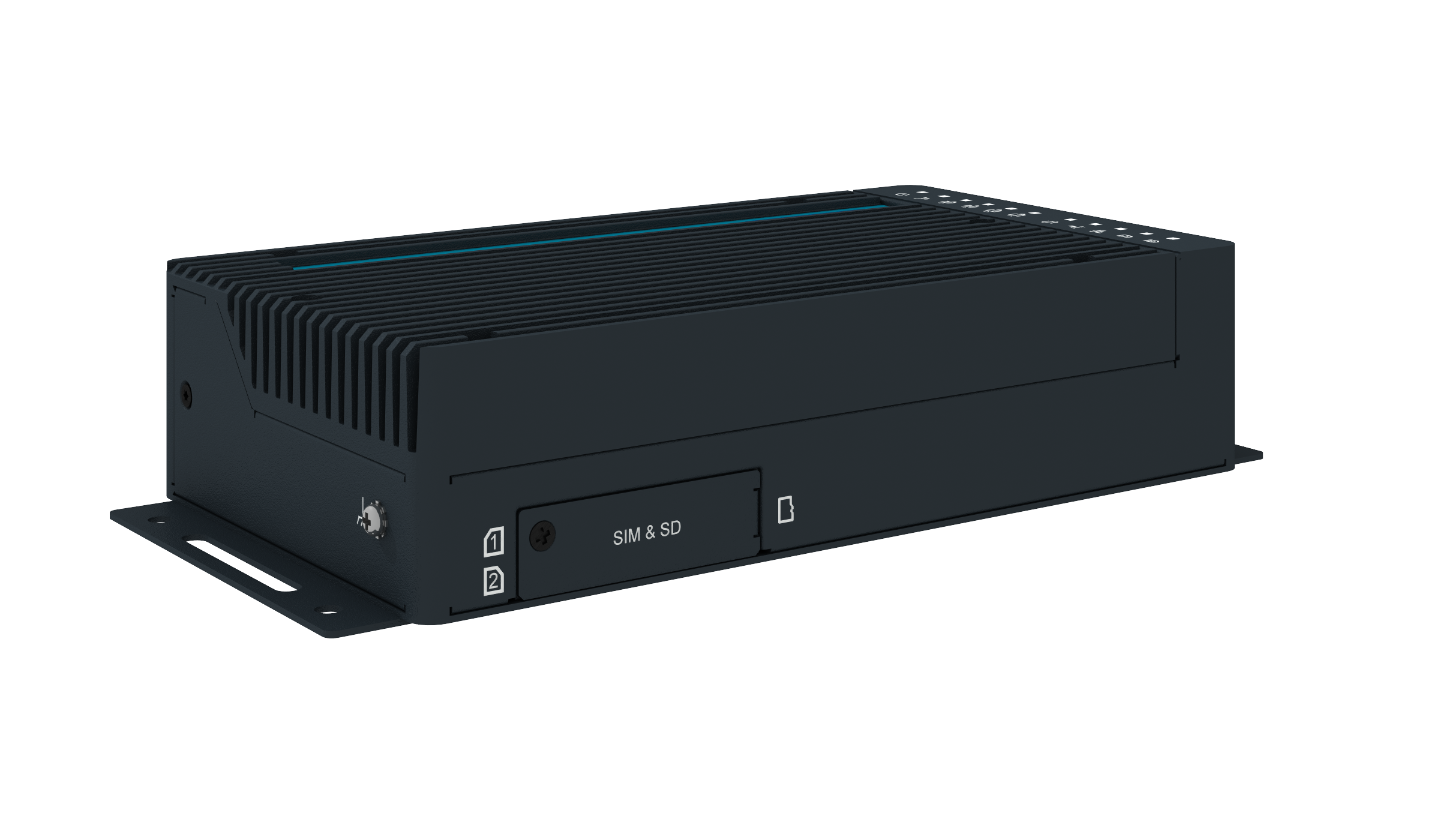

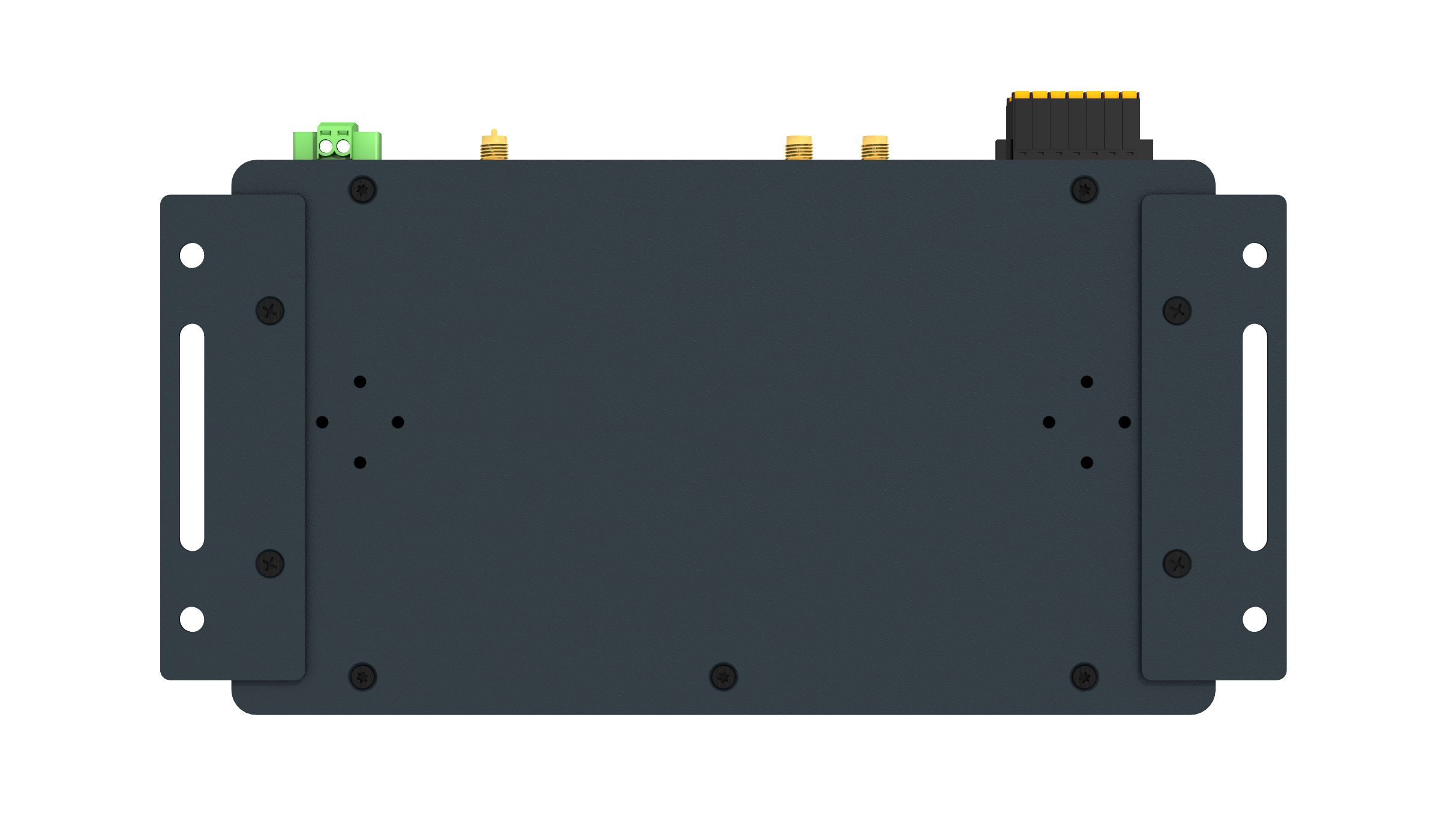

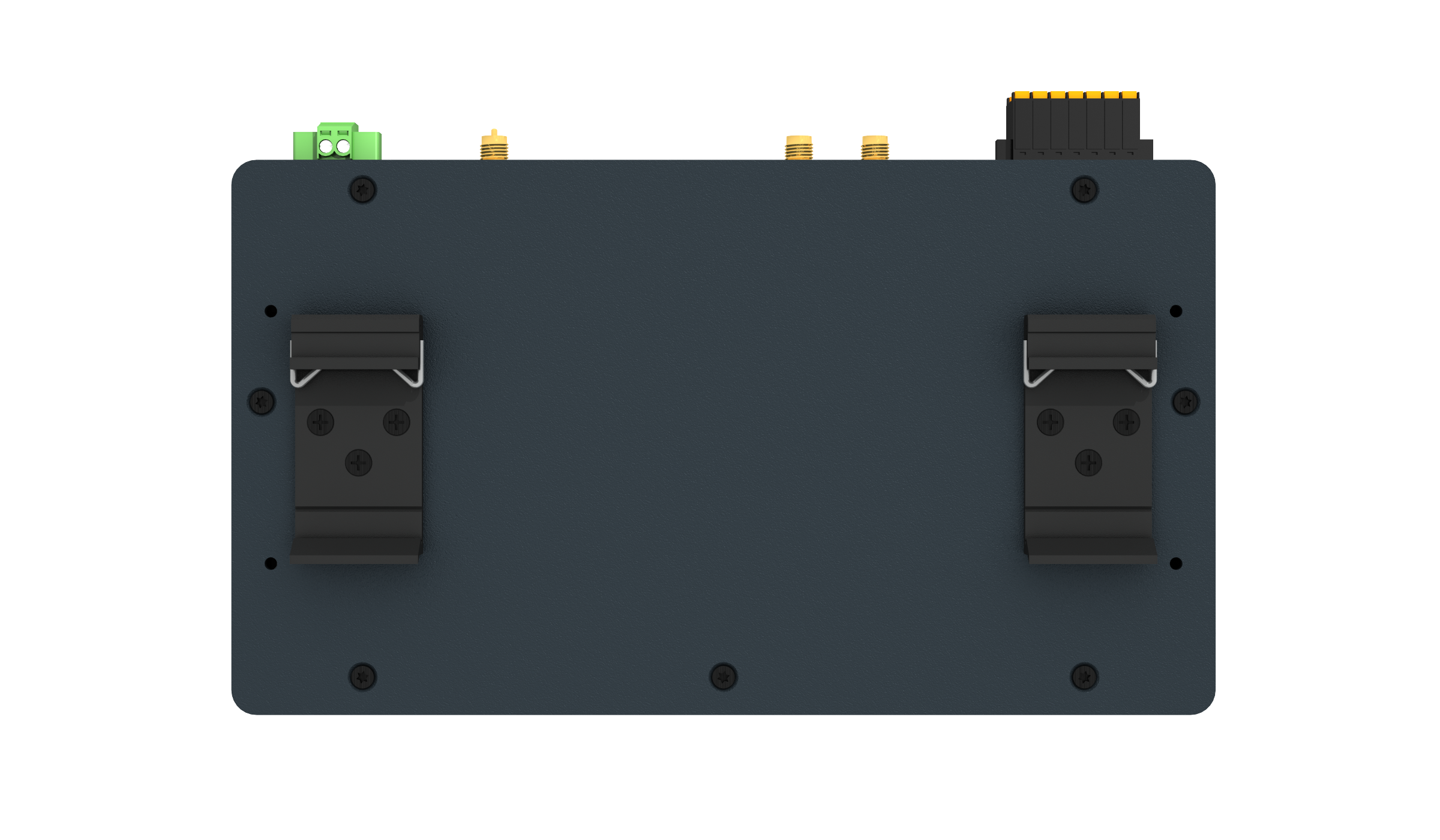

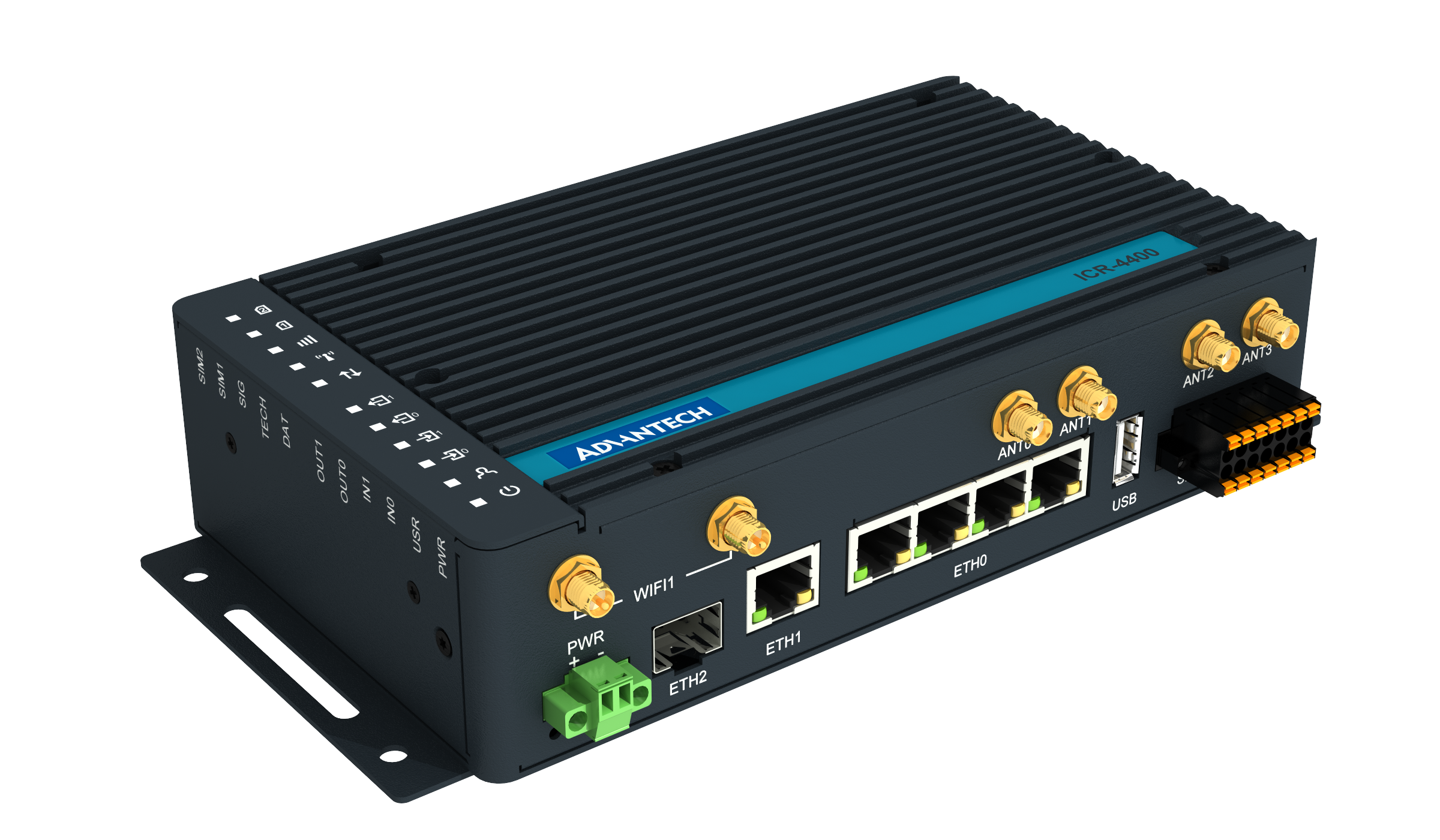

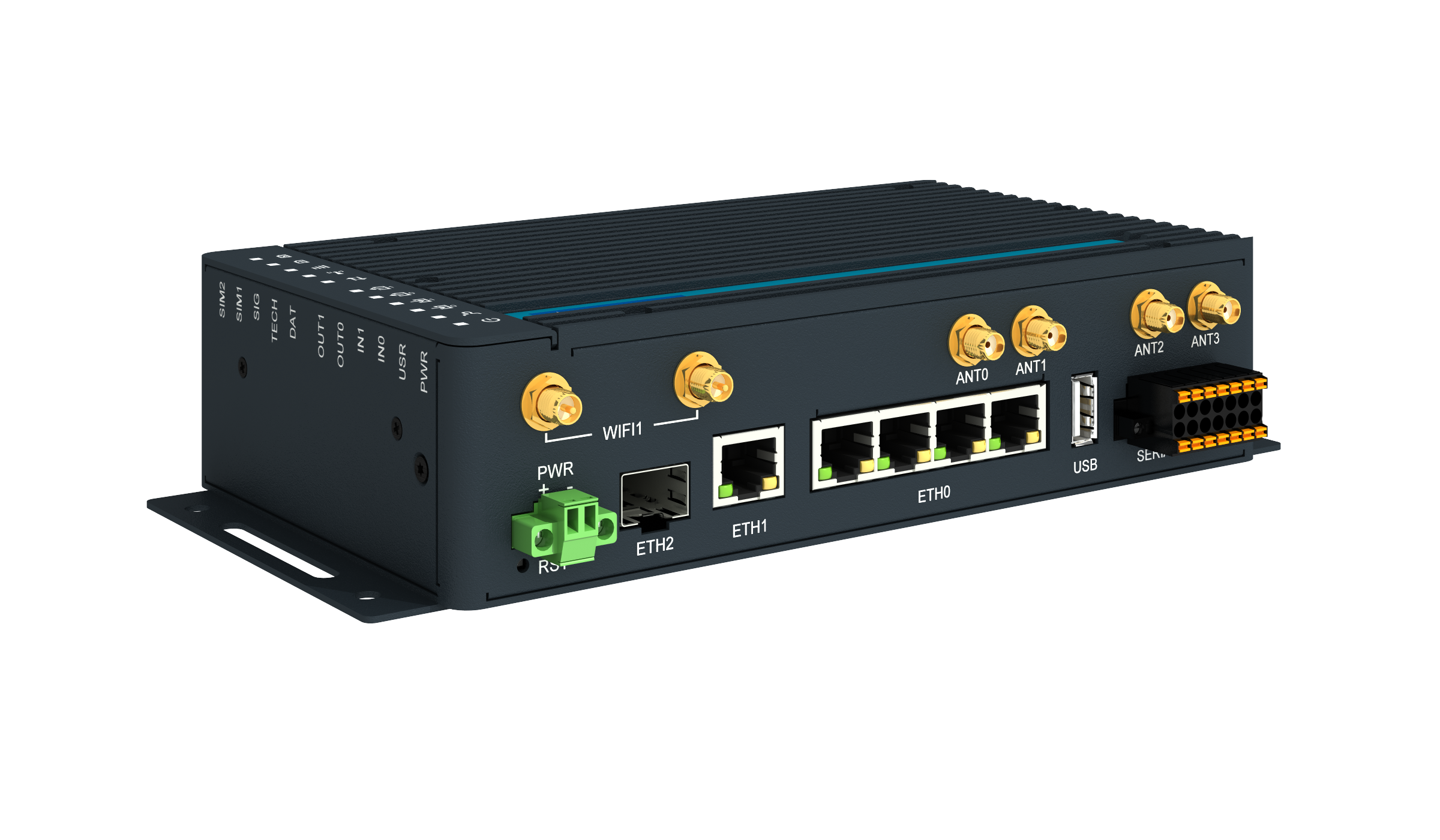

This router contains two SIM readers, which are placed on the rear side of the device. There is also the possibility to use one eSIM. ICR-4400 has two mPCIe connectors that can be used for two WiFi modules with 802.11a,b,g,n,ac modes, 2×2 MIMO support, and Bluetooth v5.0, are available. The router is supplied in a robust metal casing for a wall mount (DIN mount is optional).
ICR-4461 is easy to manage using WebAccess/DMP, a full-featured cloud-based management, provisioning, and monitoring tool for mass deployment.
