ICR-3831

Life Cycle: EOL, FW maintenance only

Regions: EMEA

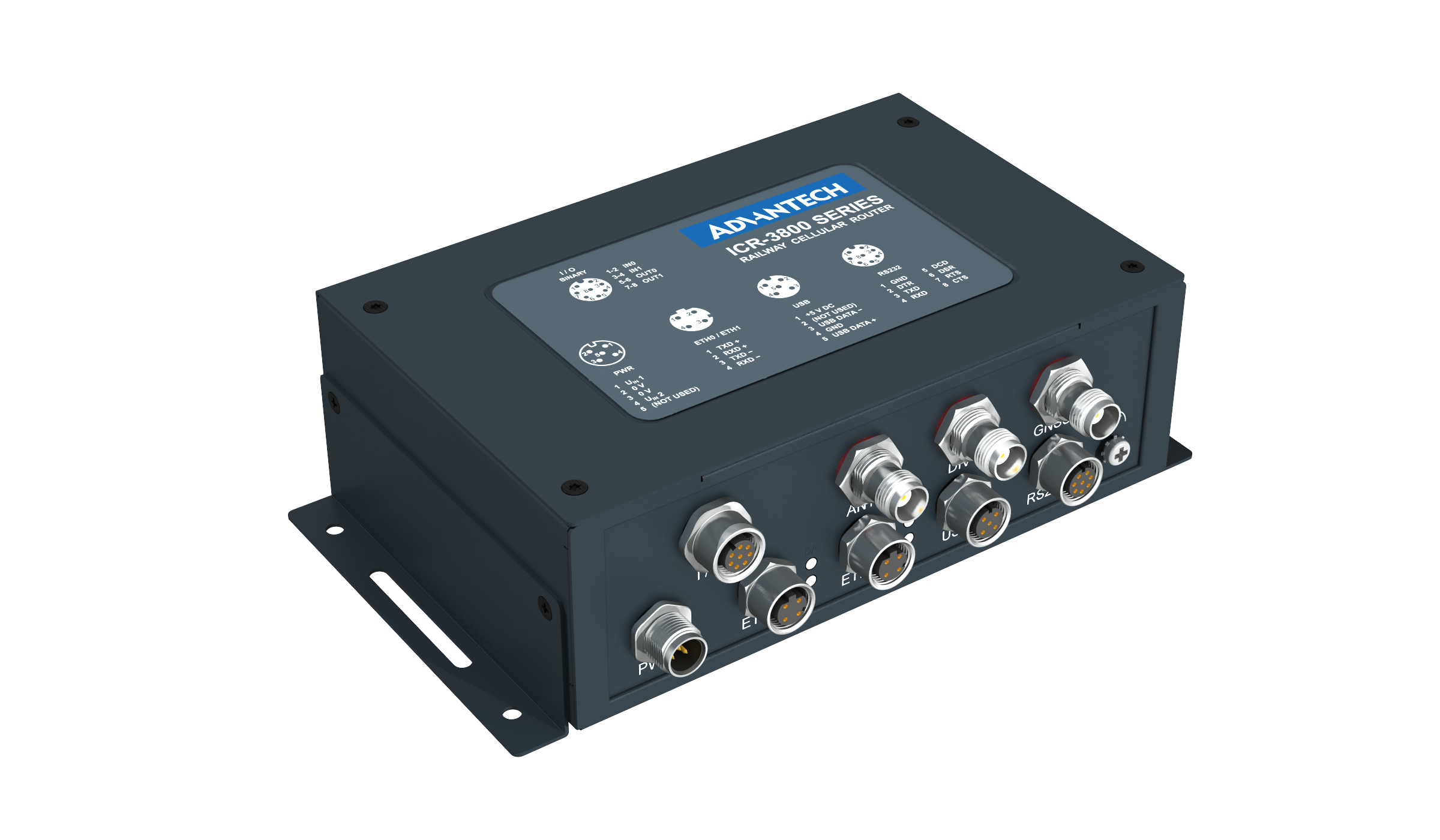

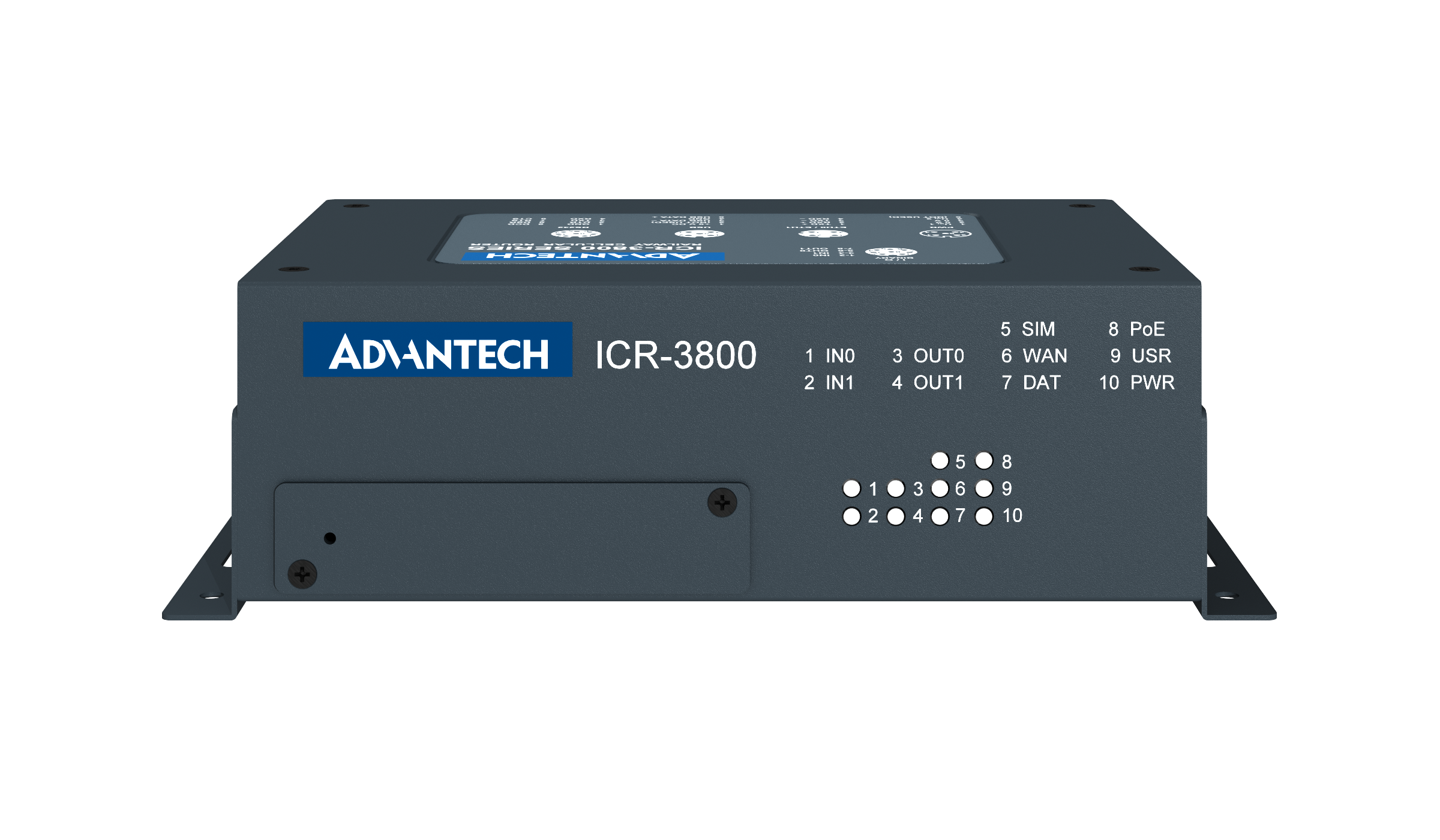

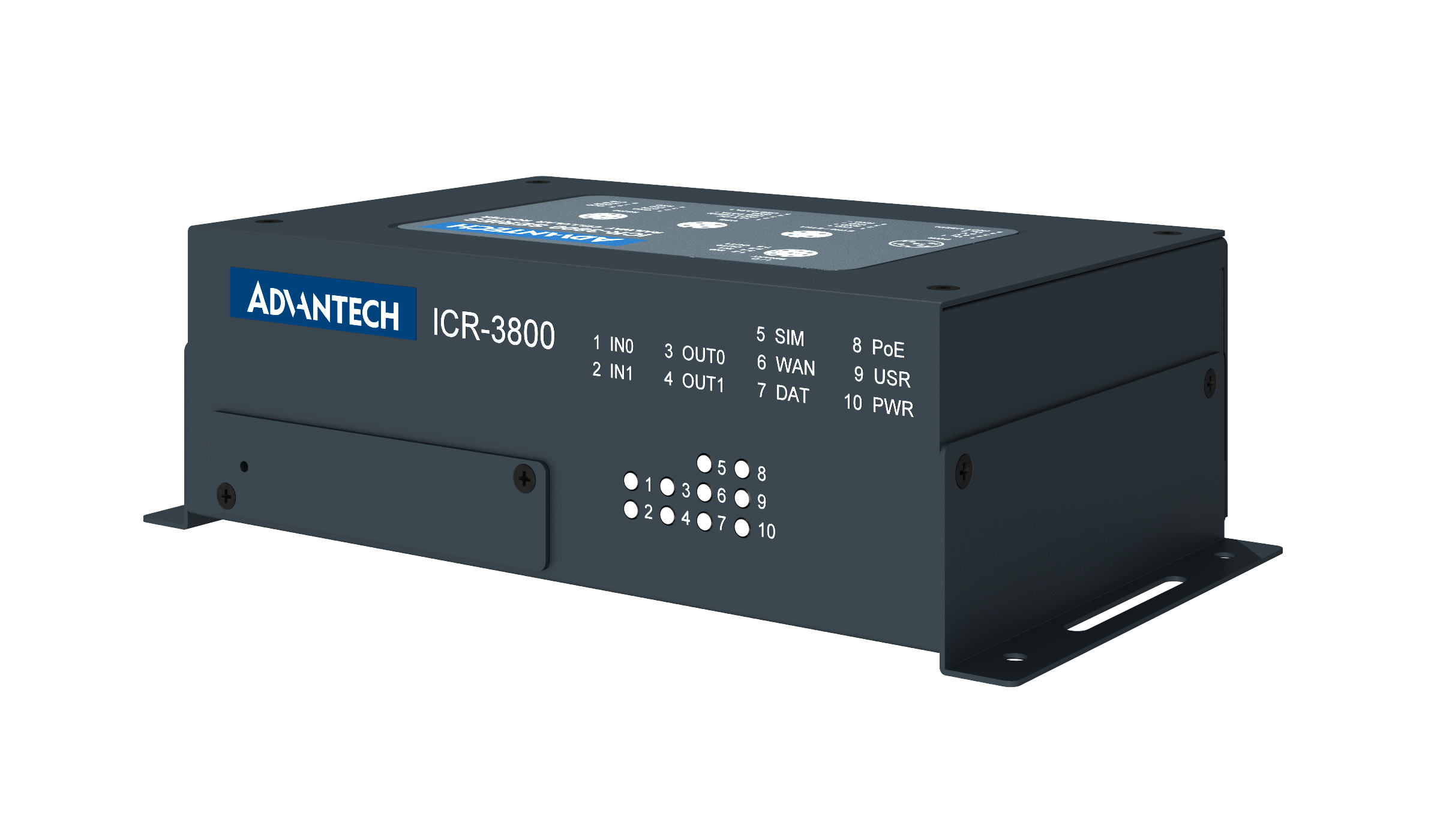

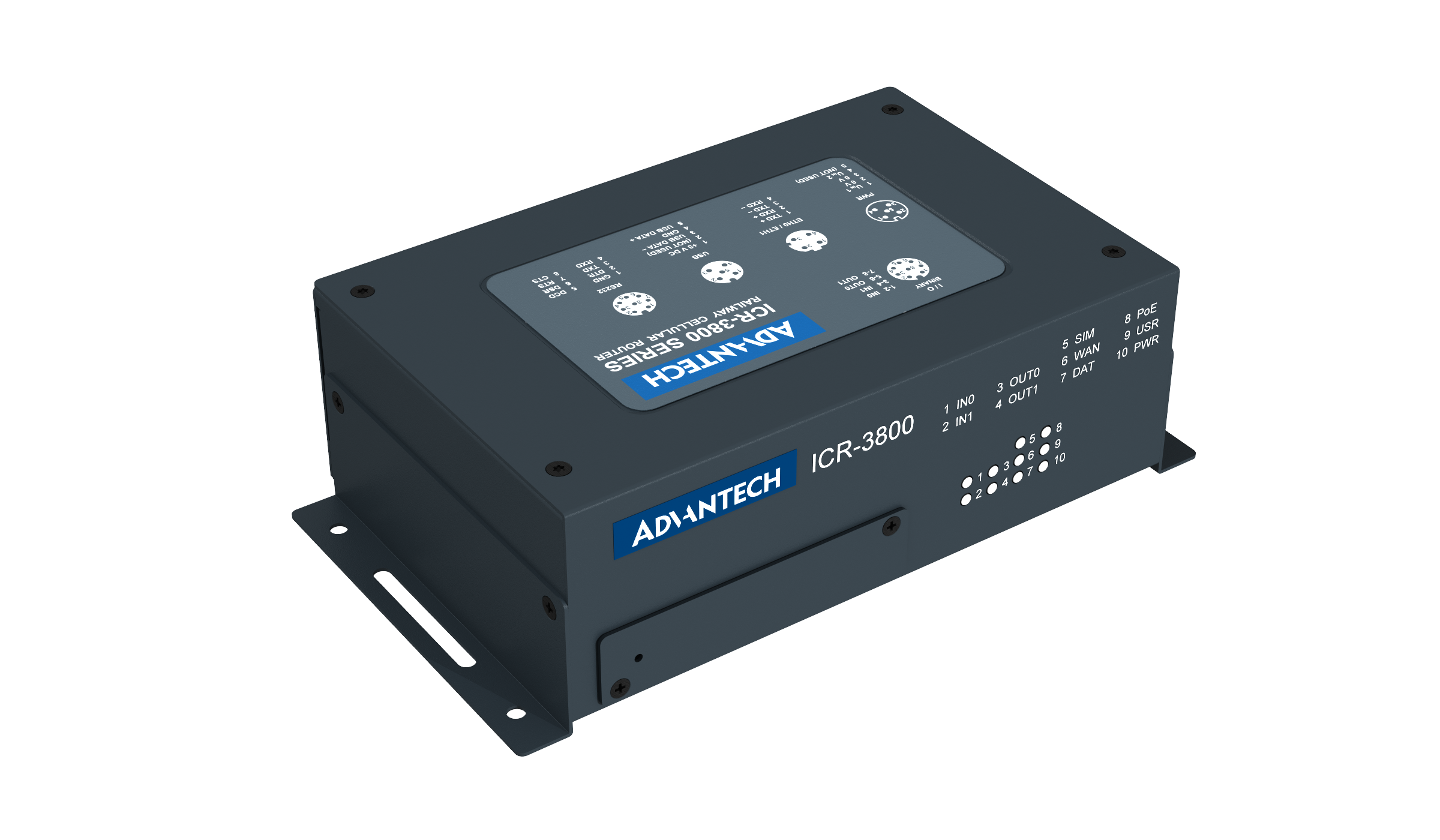

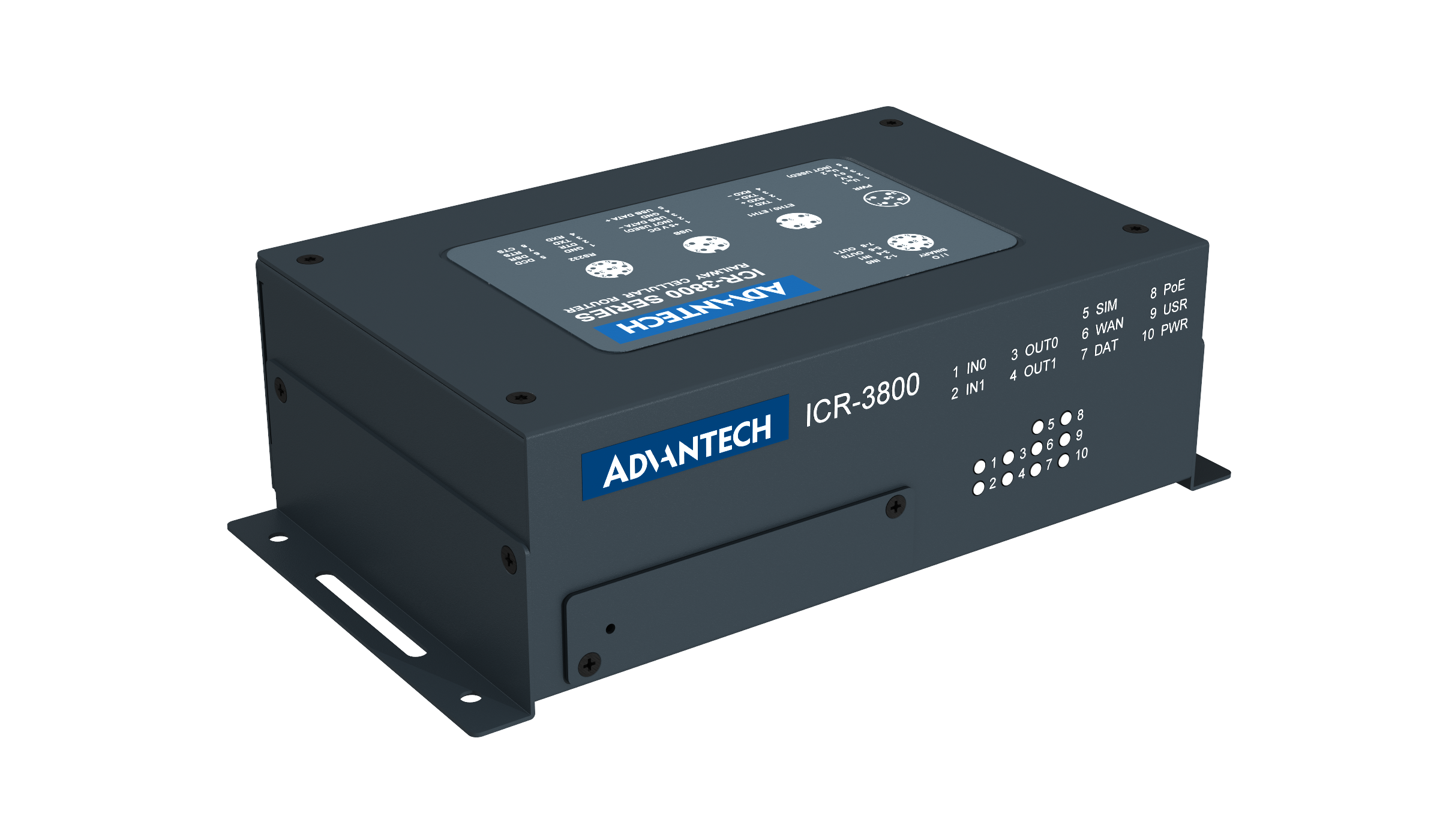

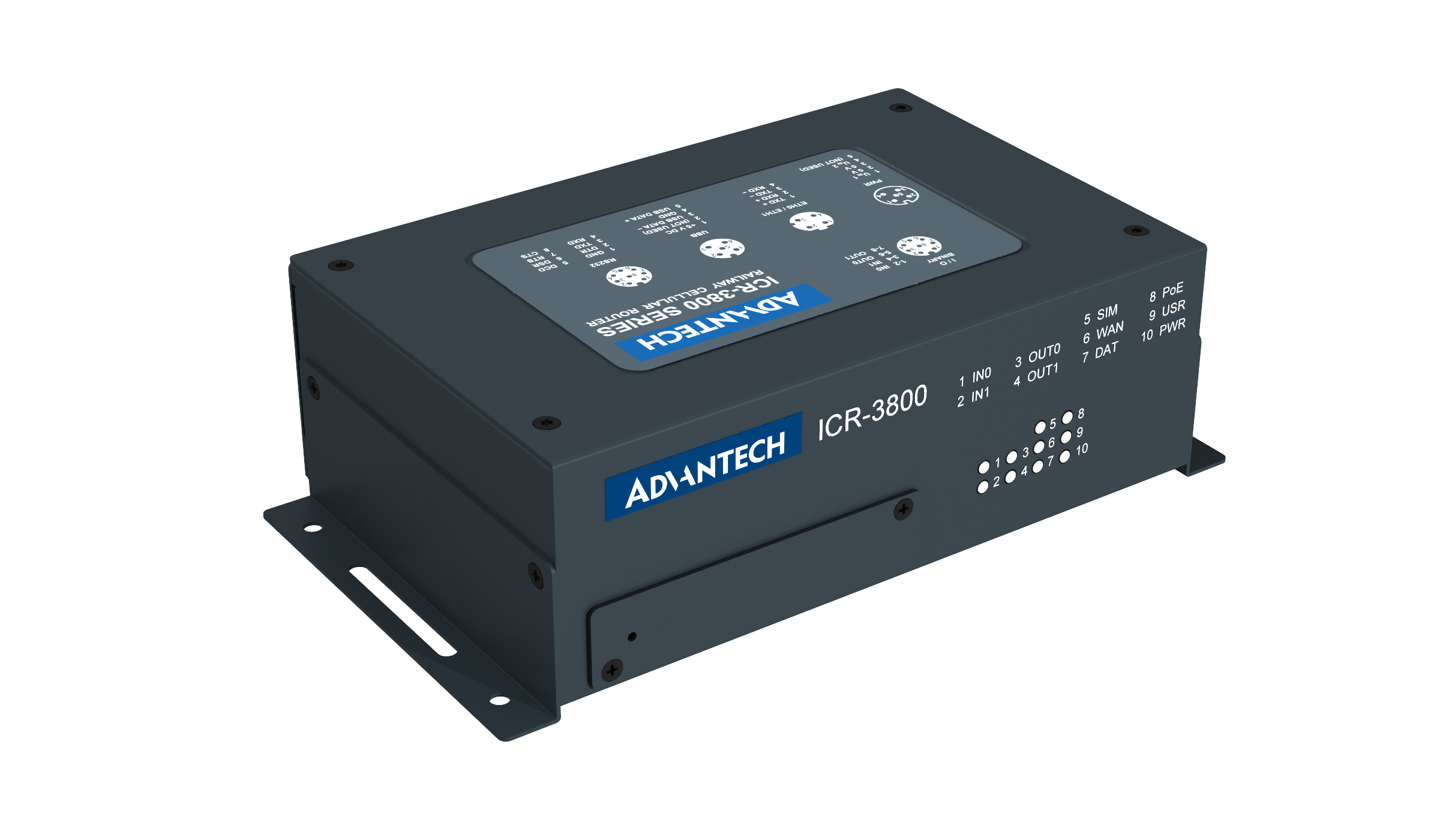

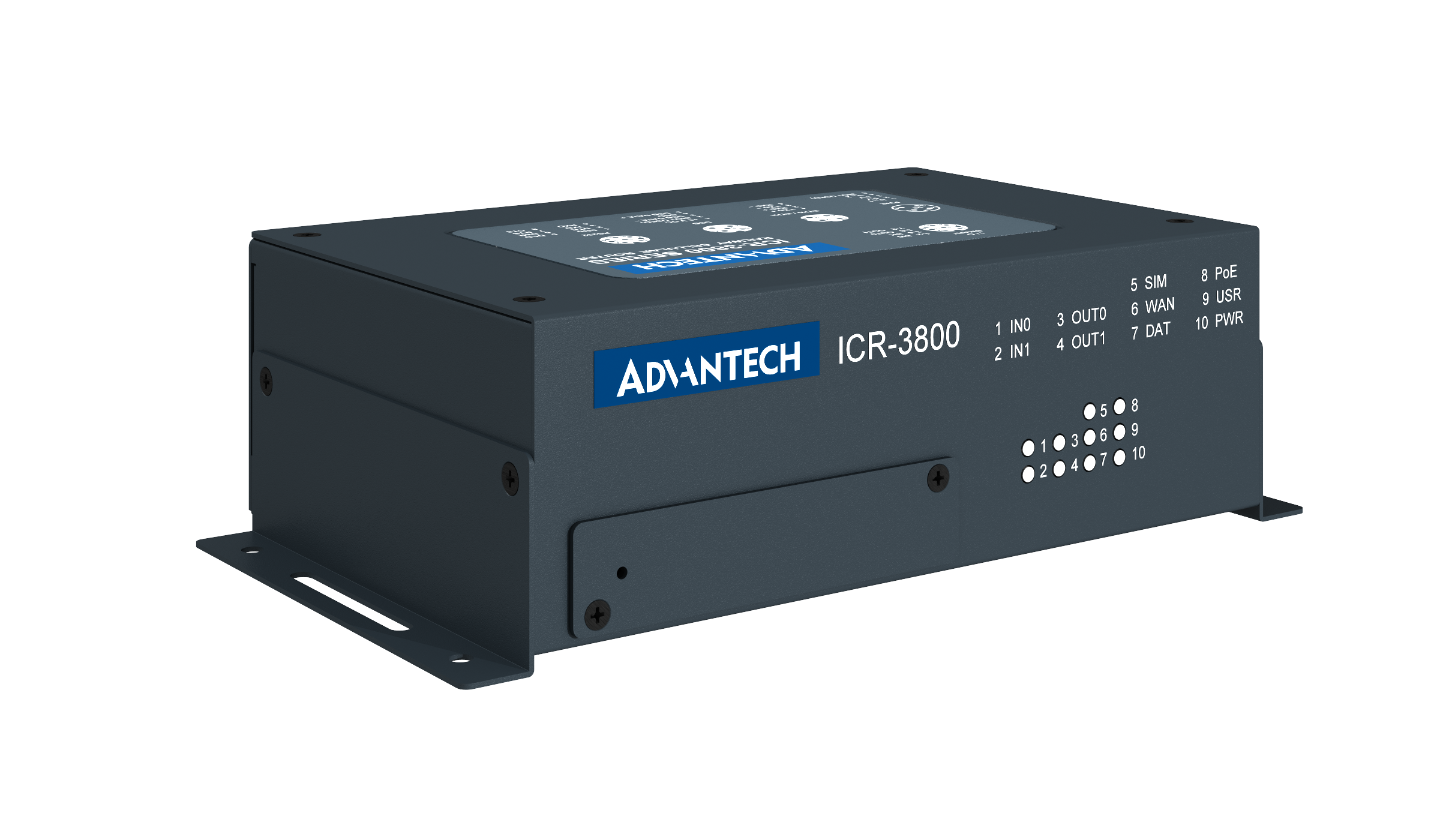

4G LTE Railway Router

Technical description

ICR-3831 cellular LTE Cat.4 router and the gateway is designed and EN 50155 certified for rolling stock applications such as railways or trams.

LTE Router provides secure Internet connectivity for devices equipped serial interface and LANs via the cellular networks. With upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps, ICR-3800 provides ample bandwidth, even for applications that require video and fast Internet access.

ICR-3831 is equipped with an extremely powerful Cortex A8 CPU at 1GHz, 256 MB flash memory, 512 MB RAM and 128kB M-RAM, providing full support for LTE (Long Term Evolution) speeds and railway applications. A secure Web interface allows users to configure and manage ICR-3831 cellular LTE router from remote locations. The router can also upgrade its configuration and firmware from the operator’s central server, allowing for simultaneous mass reconfiguration of every router on the network. Users may insert Linux scripts and can create multiple configurations for the same router and switch from one configuration to another at any time.

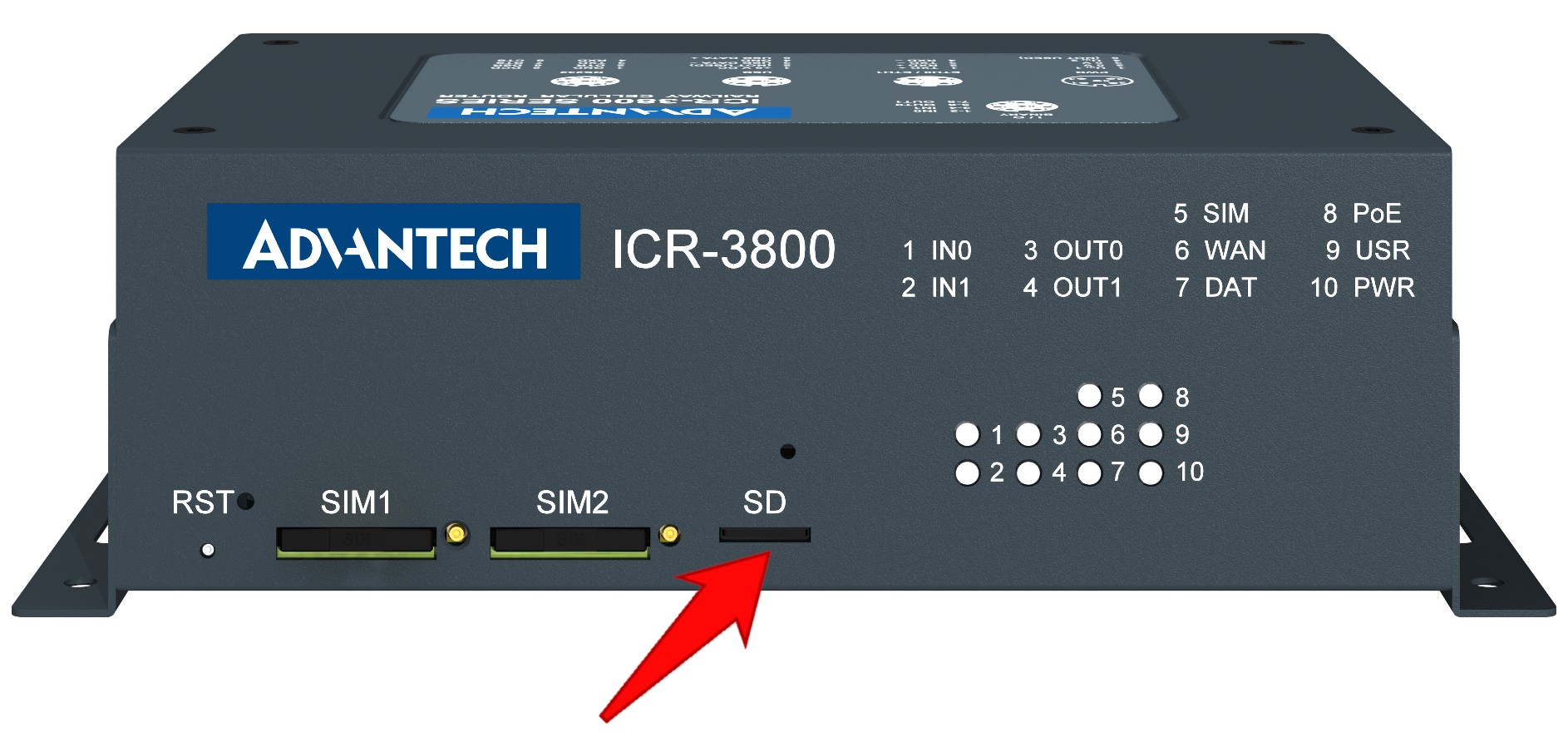

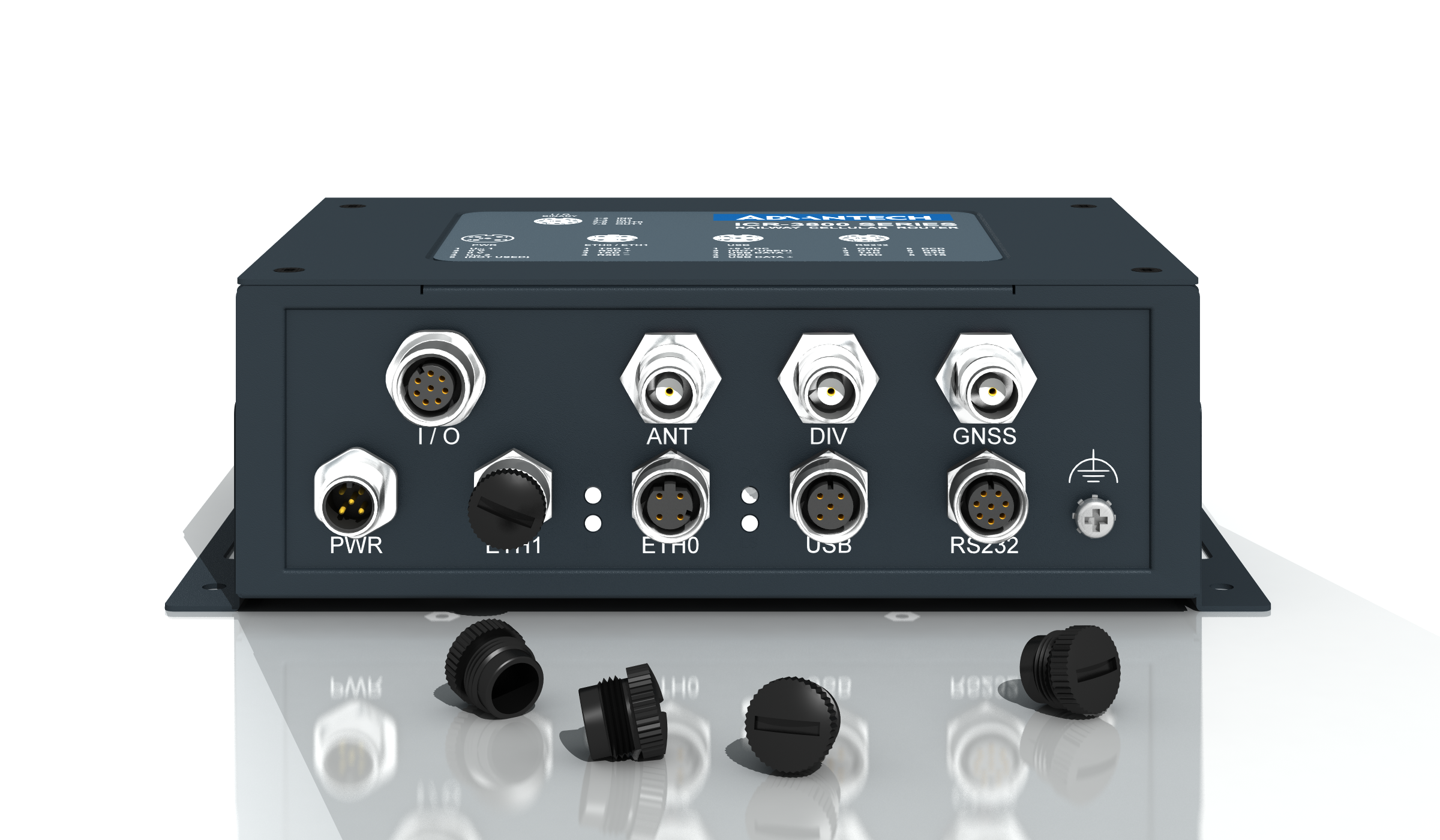

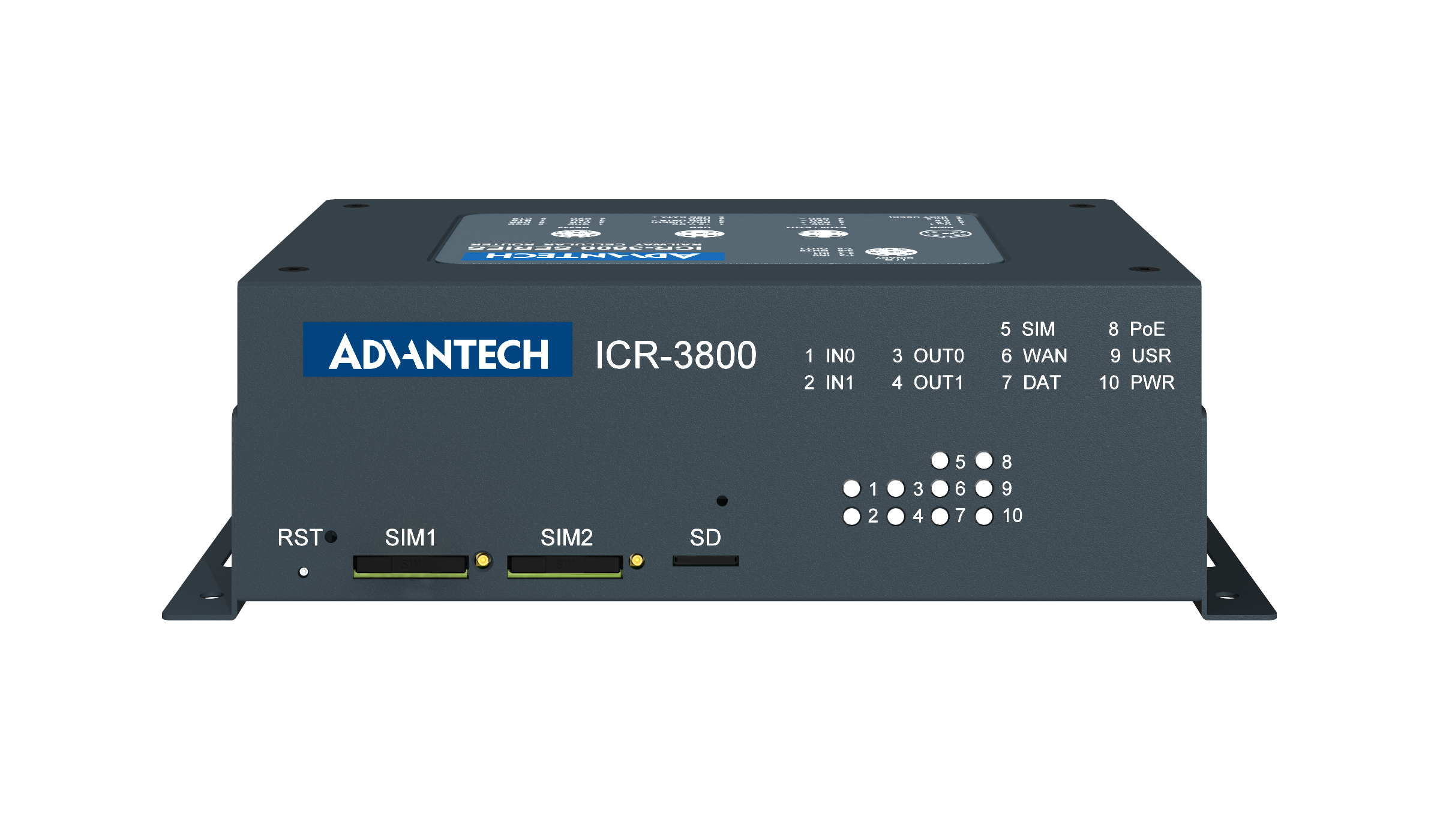

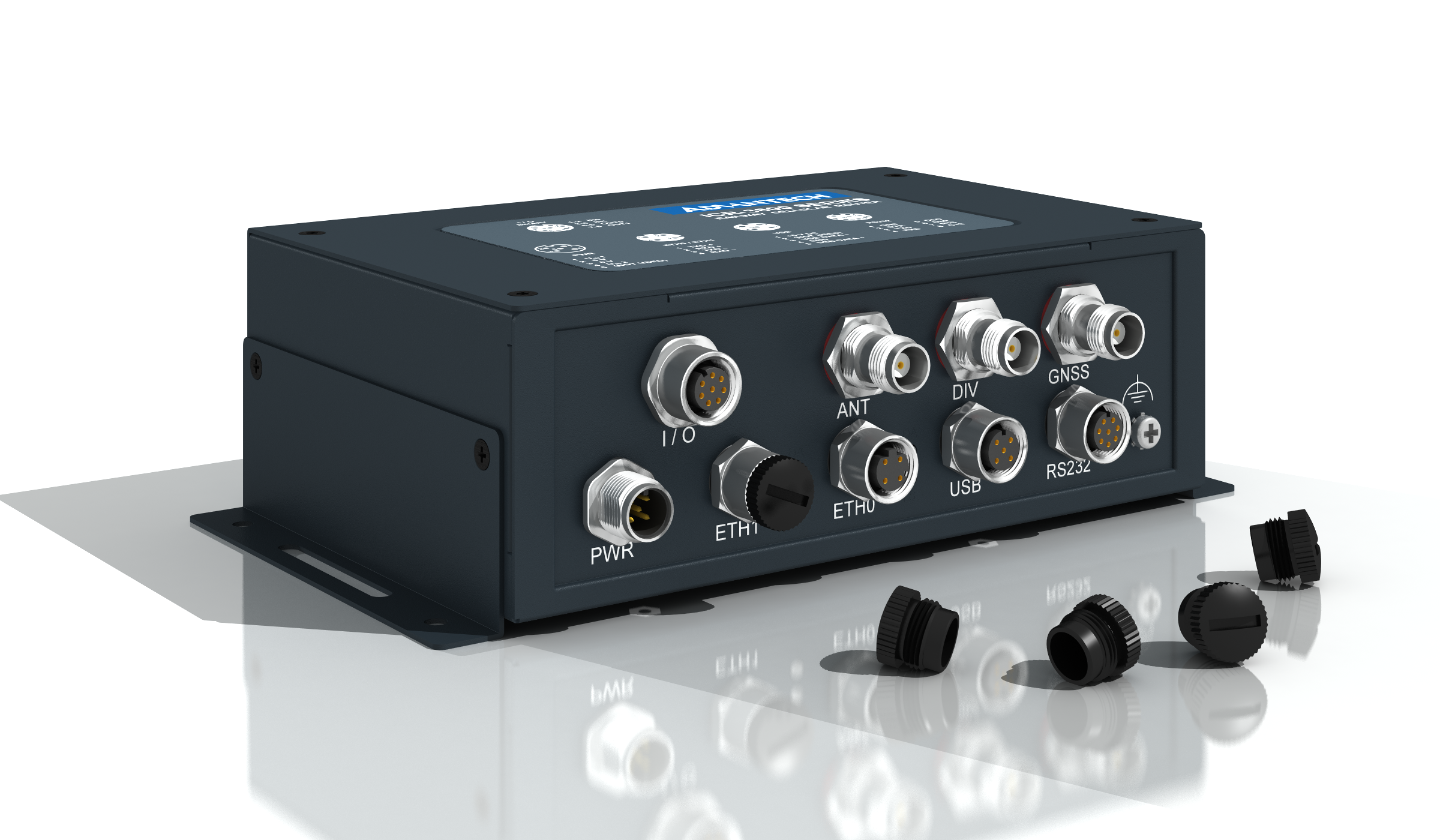

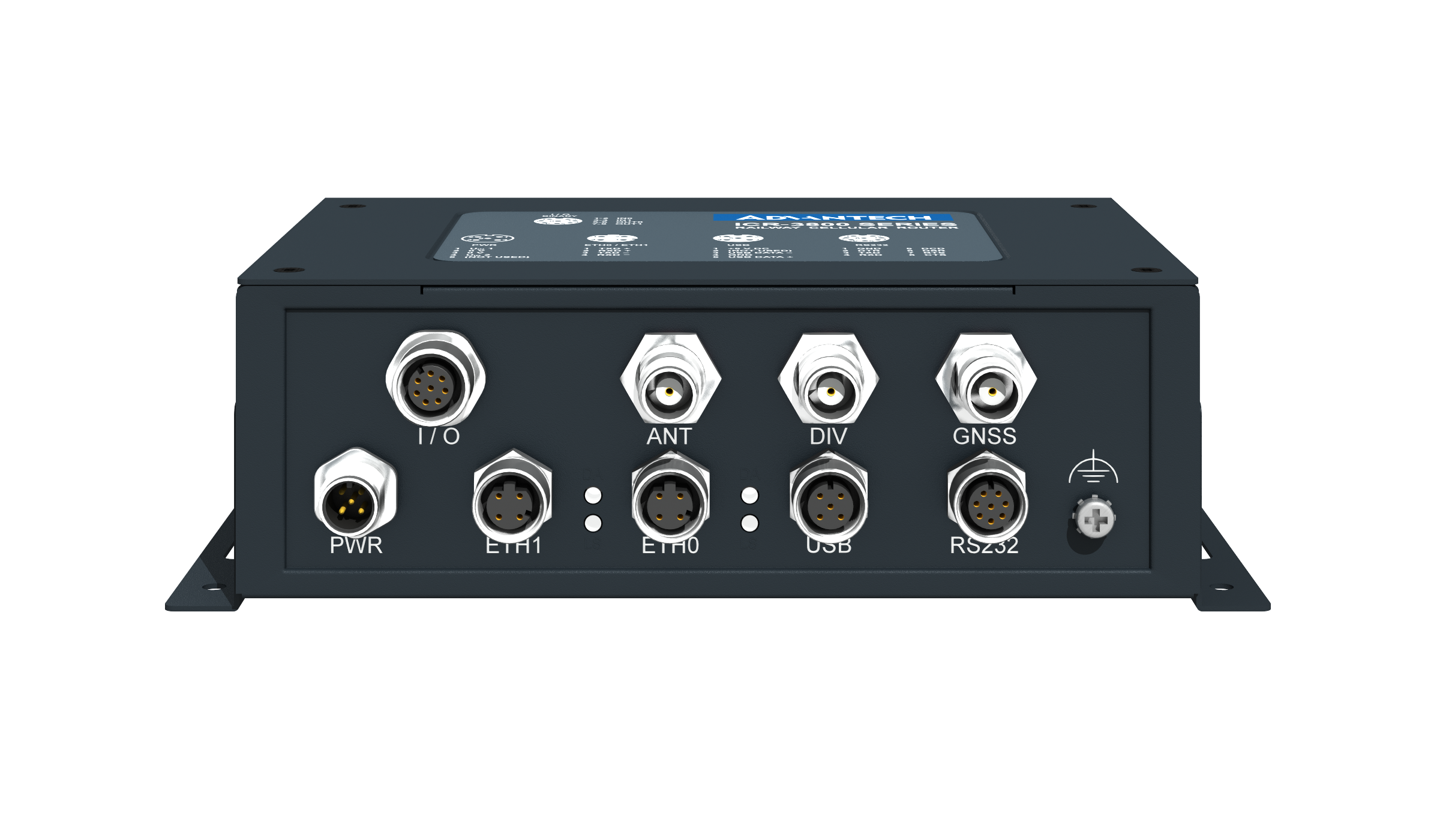

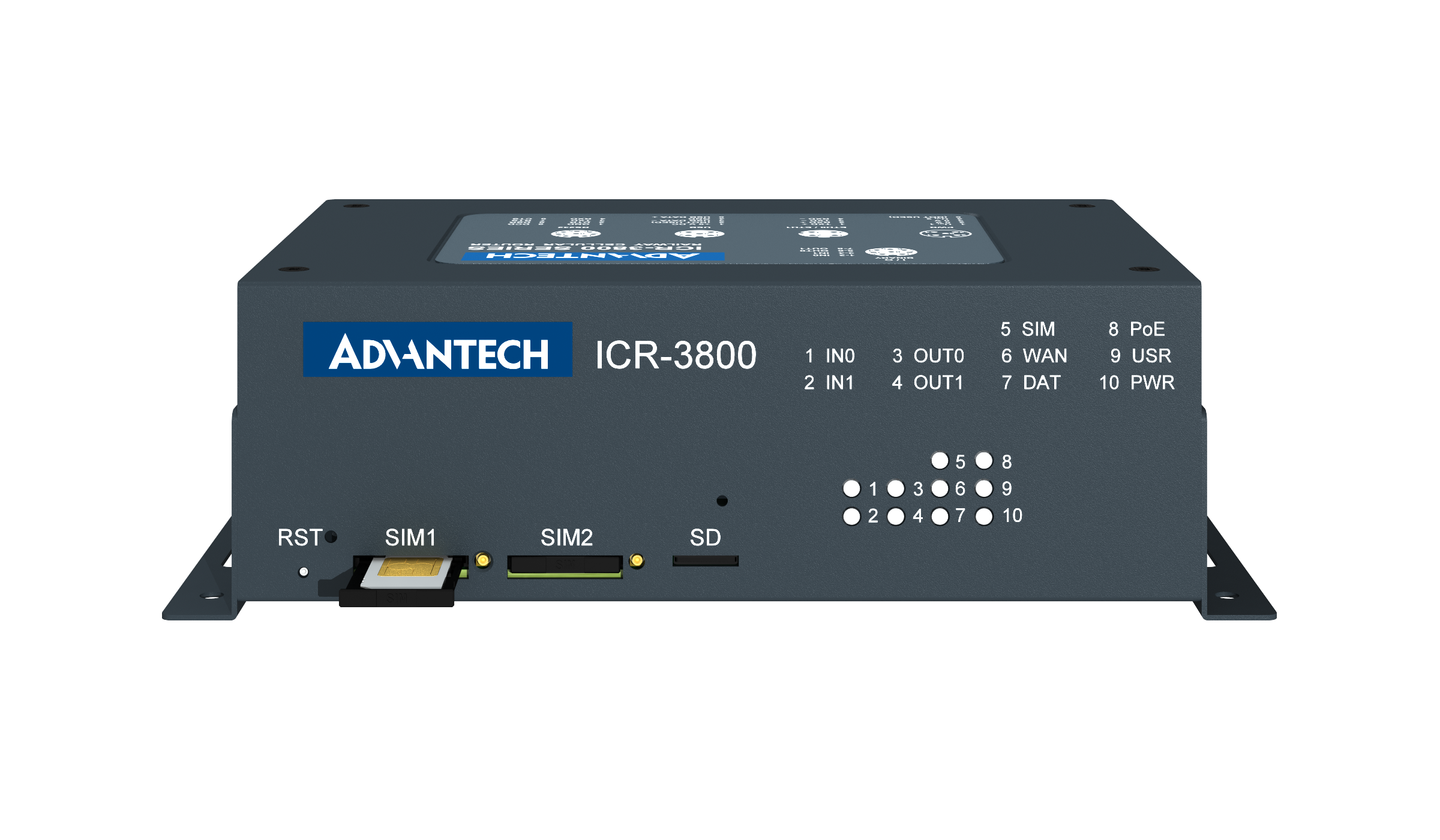

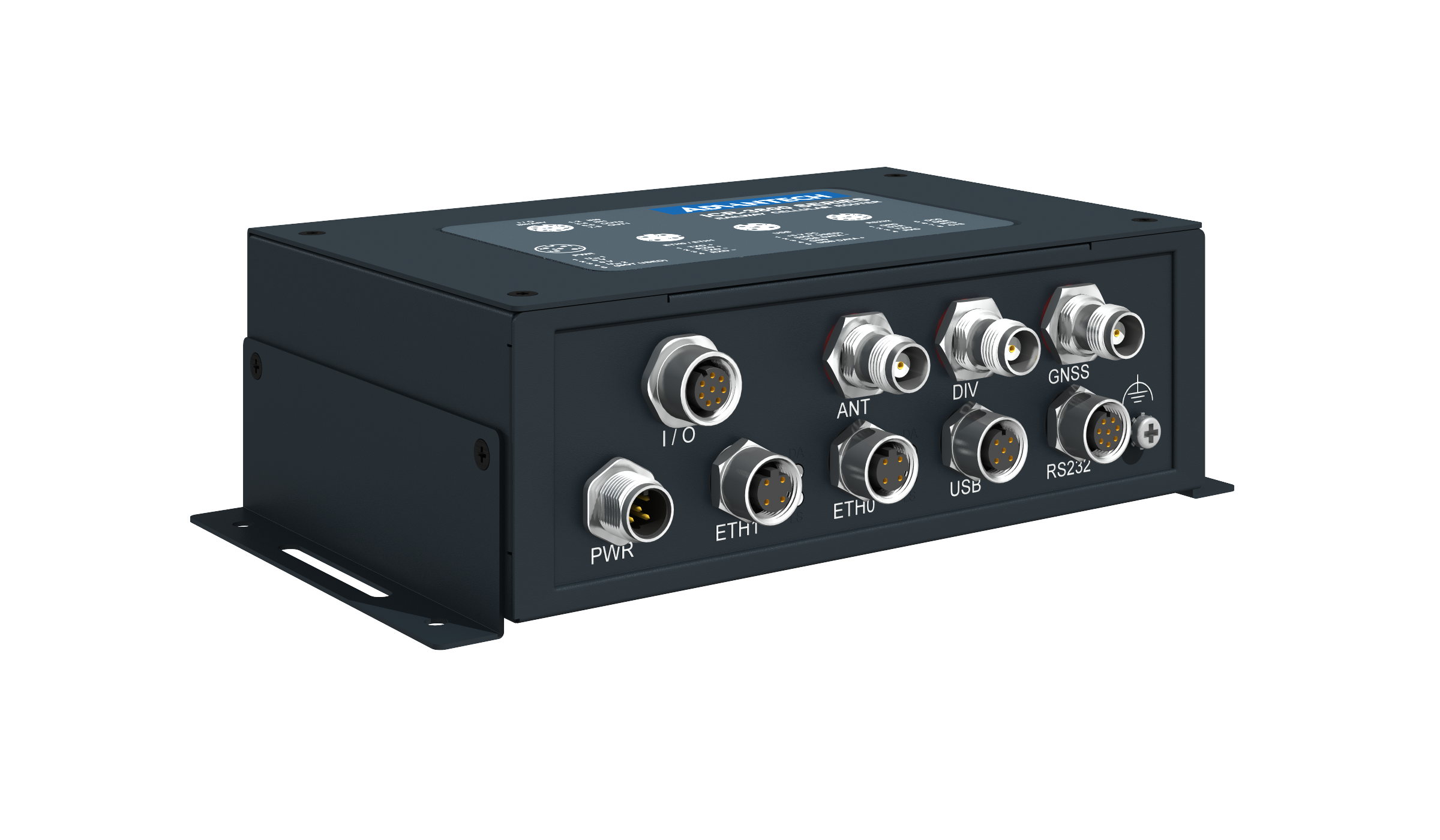

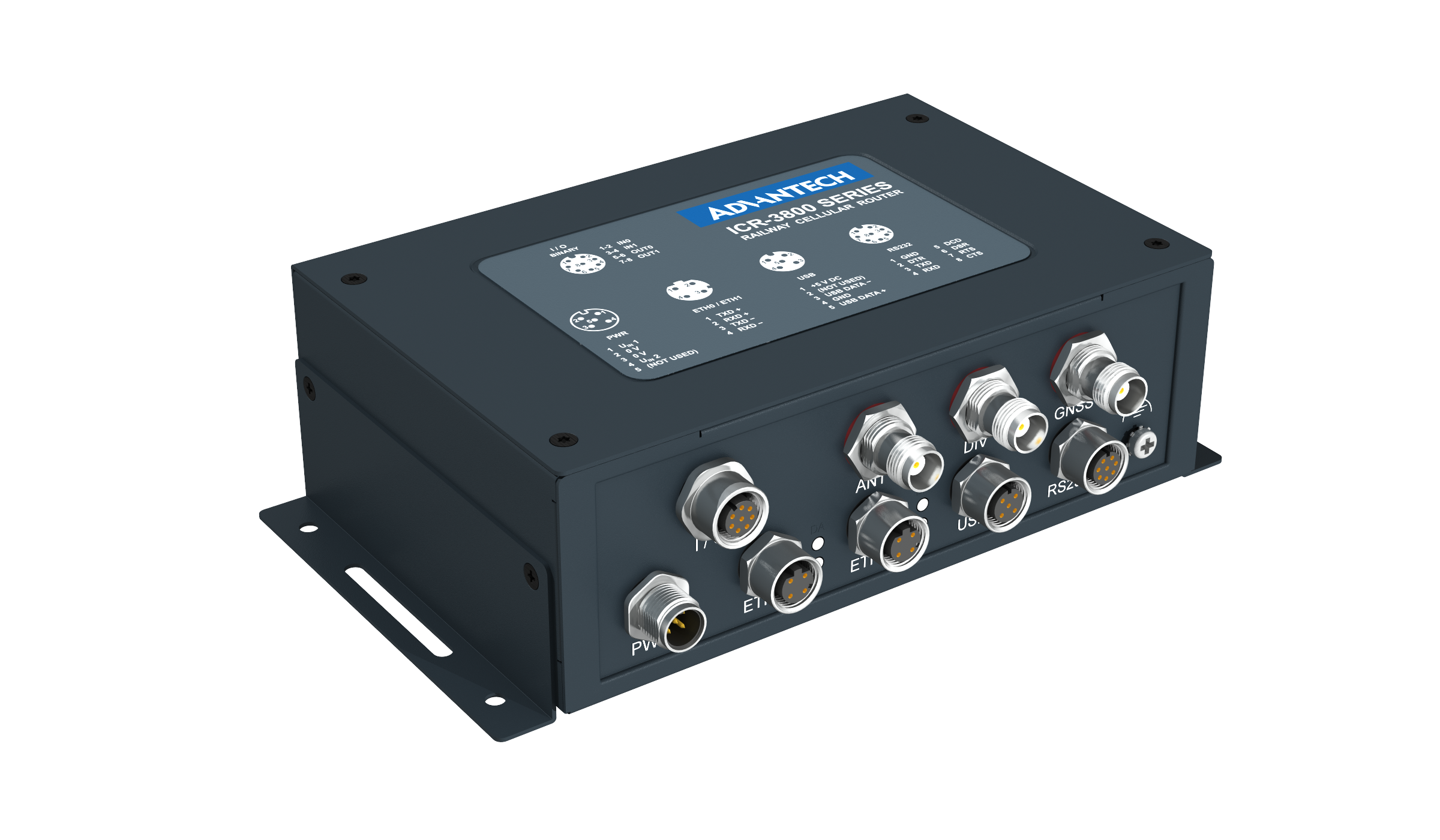

Standard configuration includes 2 Ethernet ports with 2 independent LANs/IP addresses and also includes 1 USB host port, 1 microSD card holder, 2 SIM card holders for automatic failover to an alternate service provider, 2 binary inputs(I/O), 2 binary outputs (I/O), 1 RS232 port and onboard GPS. All connectors are M12 type.

The router has industrial grade operating temperature range is -40 to +70 °C. ICR-3831 supports real time data encryption and the creation of VPN tunnels using IPsec, OpenVPN and L2TP. It supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS, and numerous other functions. We also support two monitoring platforms. Both platforms are based on a cloud solution. First one is R-SeeNet (using SNMP traps) and the new, lower cost monitoring and management platform called WebAccess/DMP.
