ER75i v2

Life Cycle: EOL, FW not maintained

Regions: Global

GPRS/EDGE Router

Last available firmware is 6.3.12. New FW version will no longer be released.

Technical description

EDGE industrial router ER75i v2 is used to wirelessly connect various equipments and de-
vices via Ethernet interface 10/100 to the Internet or intranet. Thanks to high security level and
wide coverage of GPRS/EDGE technology provided by mobile phone operators, it is mostly
used in industrial applications, for remote maintenance and service of machines, or for data
transfer from solar or wind power plants. Other benefits and advantages includes high mod-
ularity – the router offers option to connect various user devices via Ethernet 10/100, RS232,
RS485, RS422, MBUS or I/O.

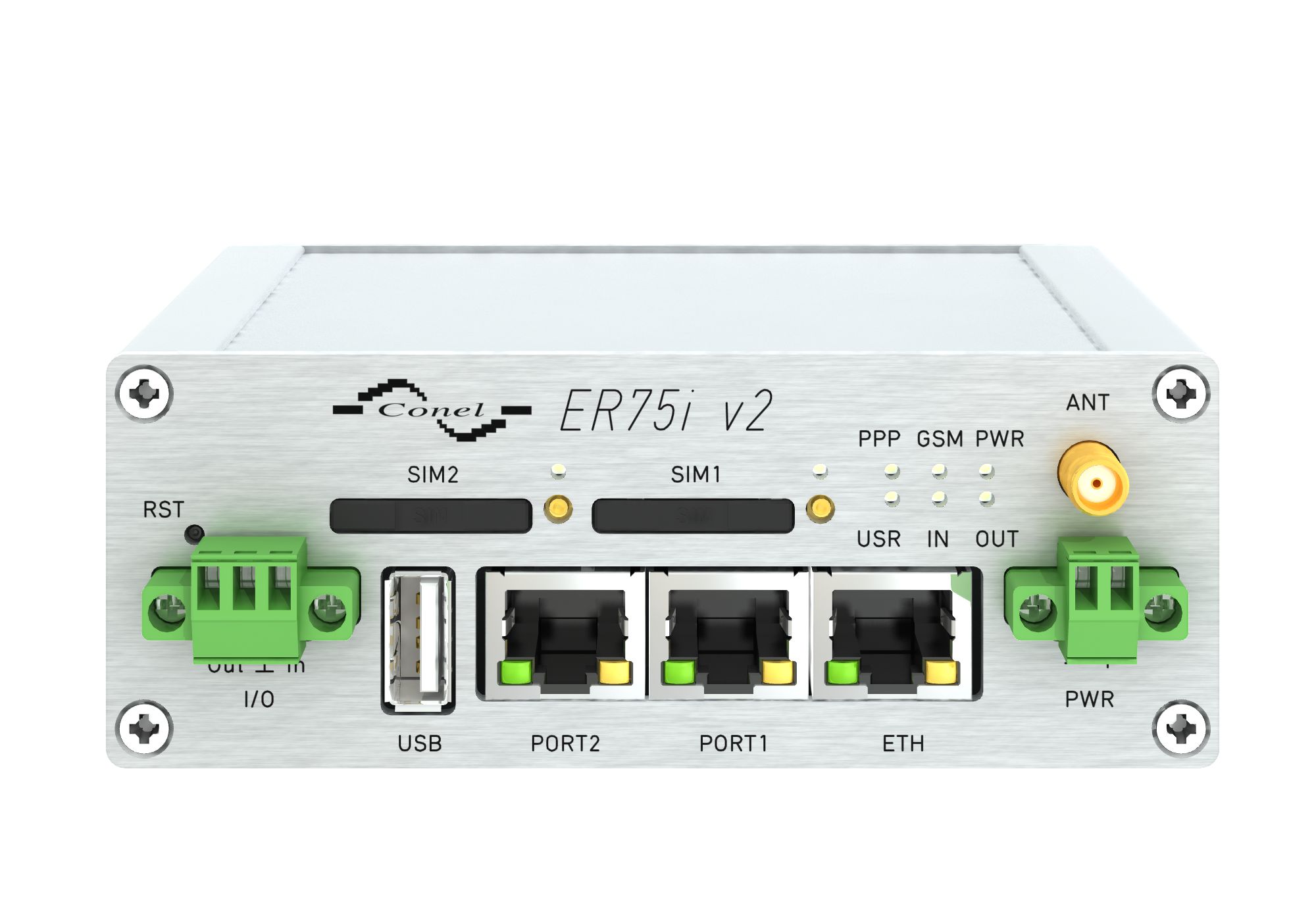

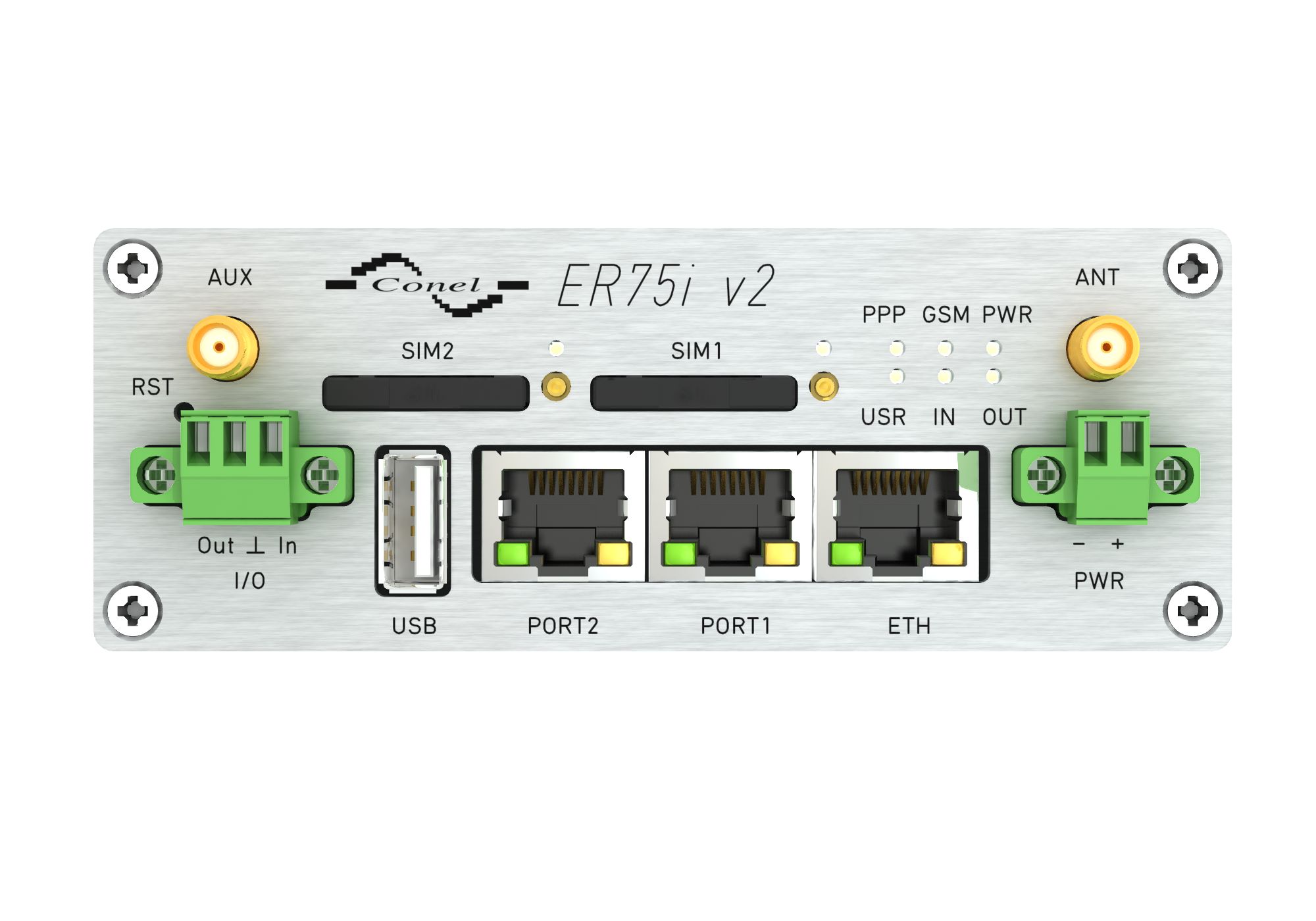

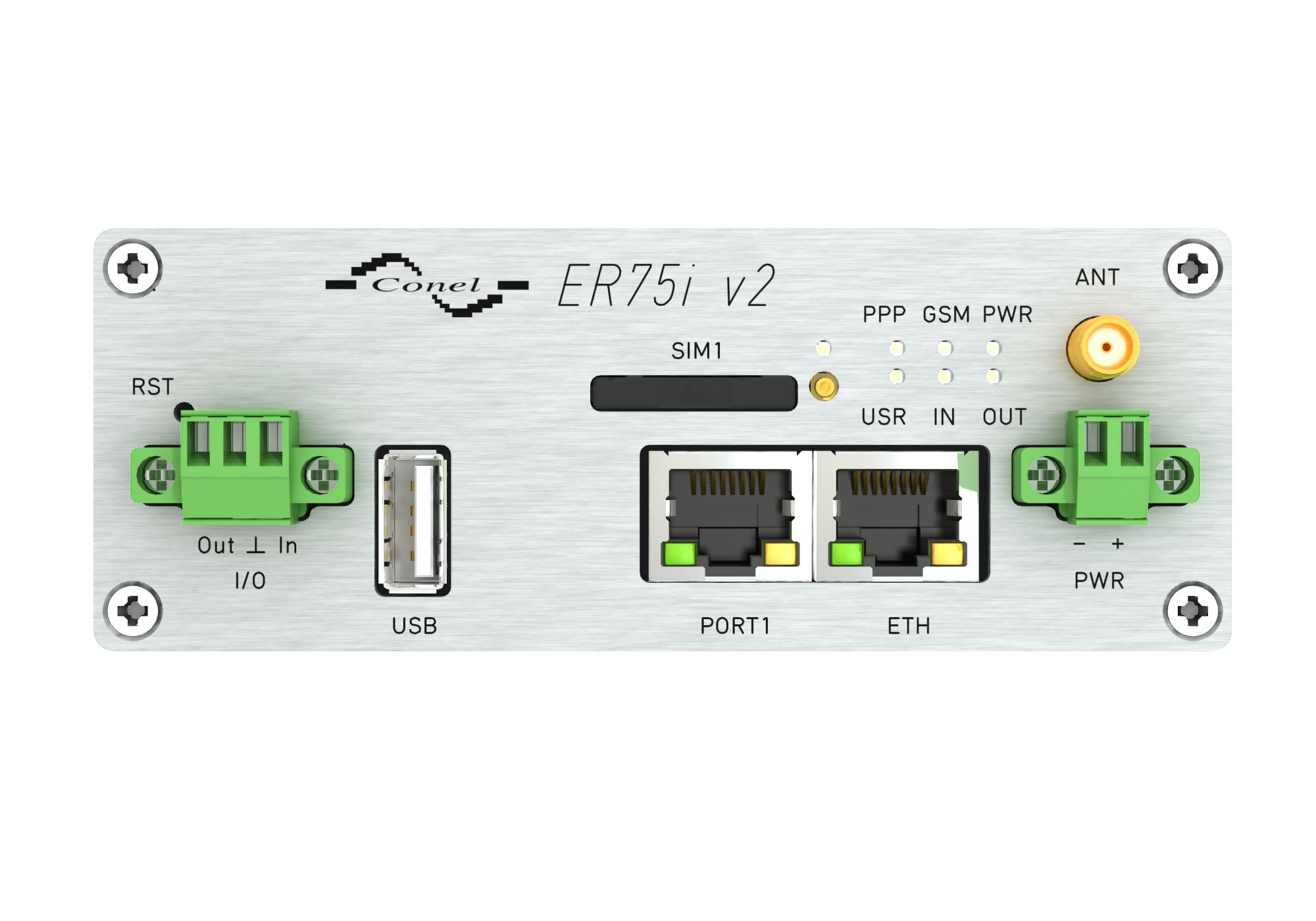

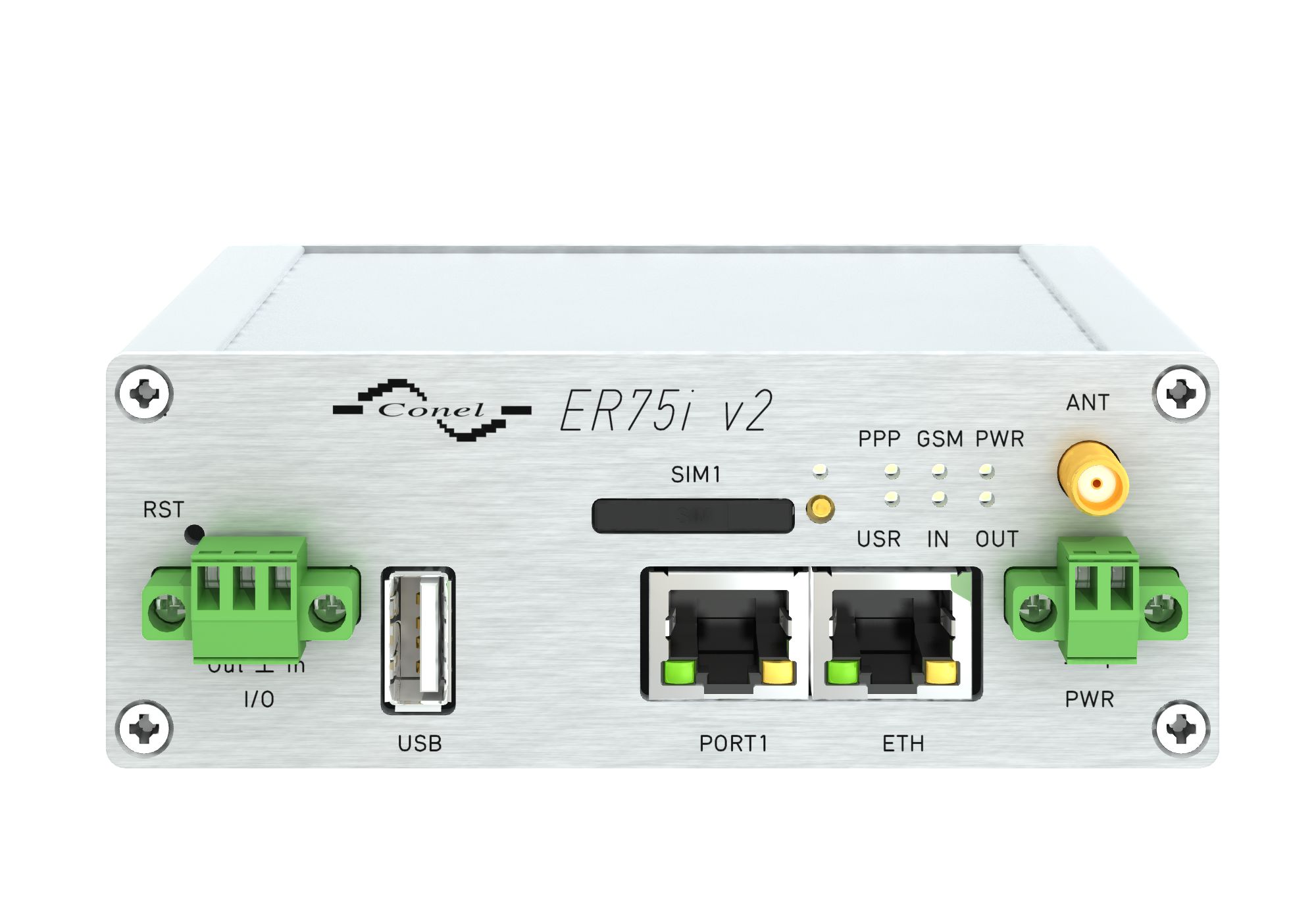

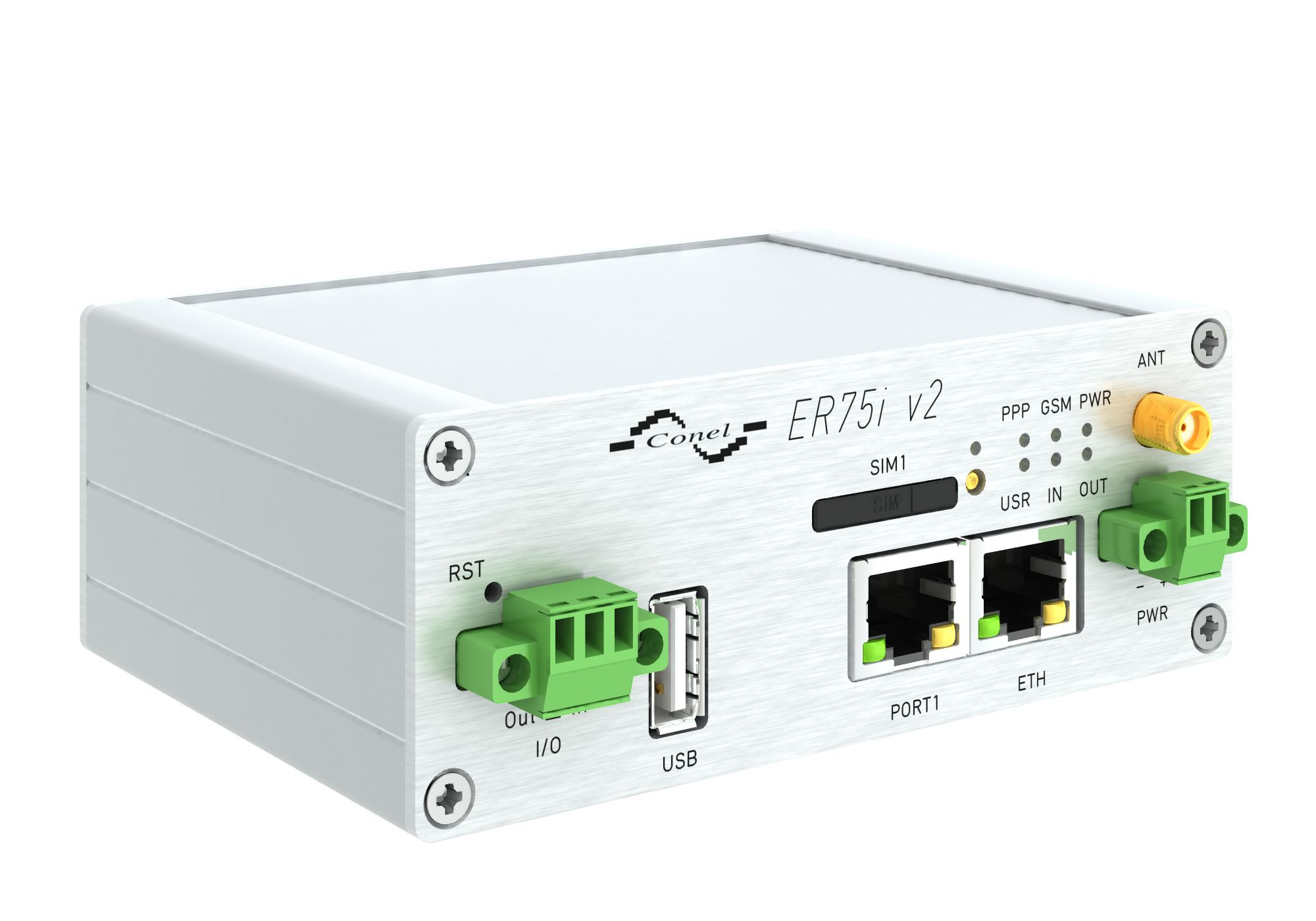

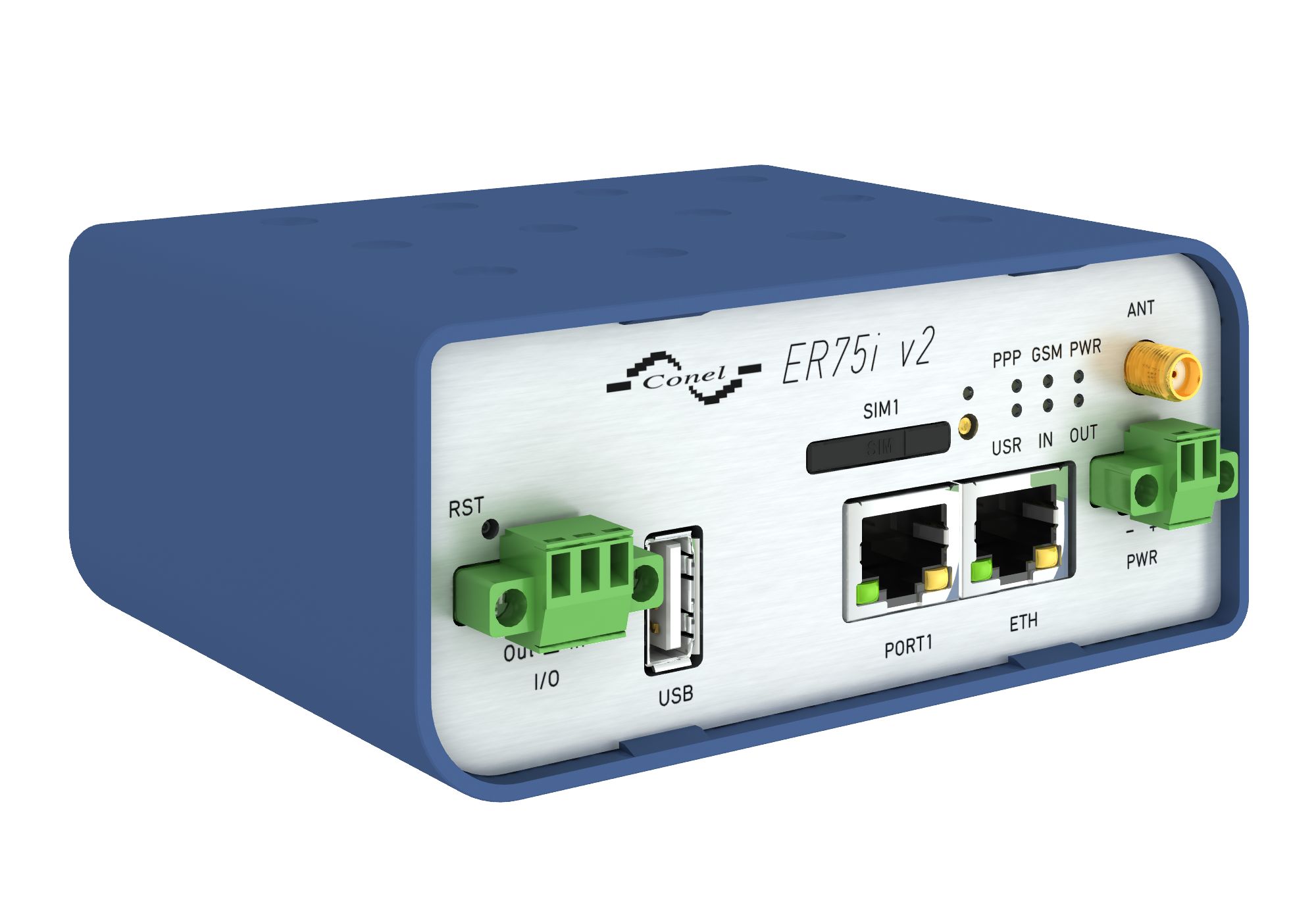

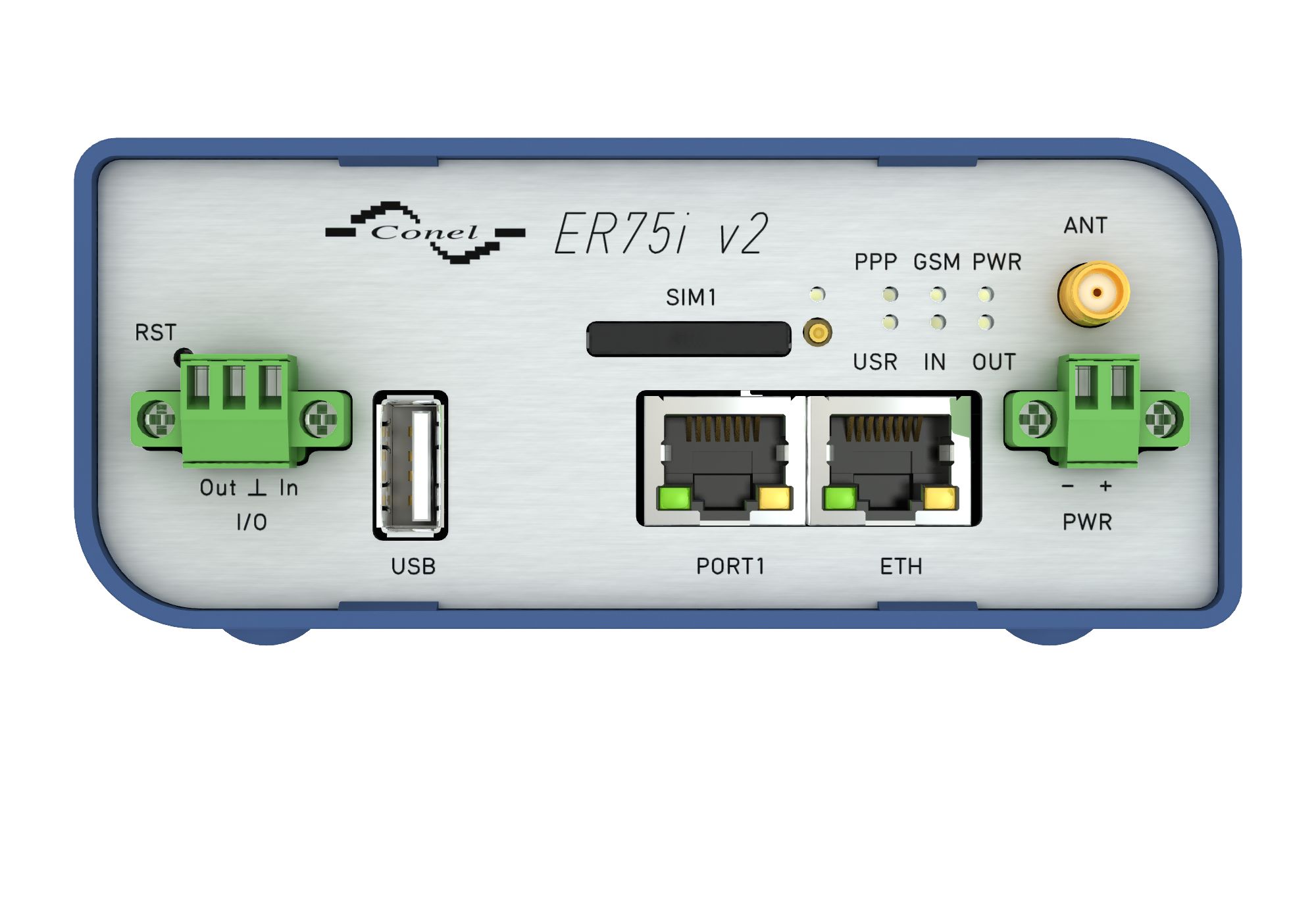

As a standard, this industrial router is equipped with one Ethernet 10/100, one USB Host
port, one binary input/output (I/O) port and one SIM card. To save and backup communica-
tion data a version with two SIM cards is available. The wide range of interface options of the
router further expands expansion Port1 and Port2, which are selected by the customer. For
Port1 are available: Ethernet port 10/100, serial interface ports RS232, RS485, RS422, MBUS
or inputs/outputs (I/O – CNT). Port2 may be equipped with serial interfaces RS232, RS485,
RS422, MBUS, wireless interfaces WIFI or WMBUS, SDH expansion port or inputs/outputs

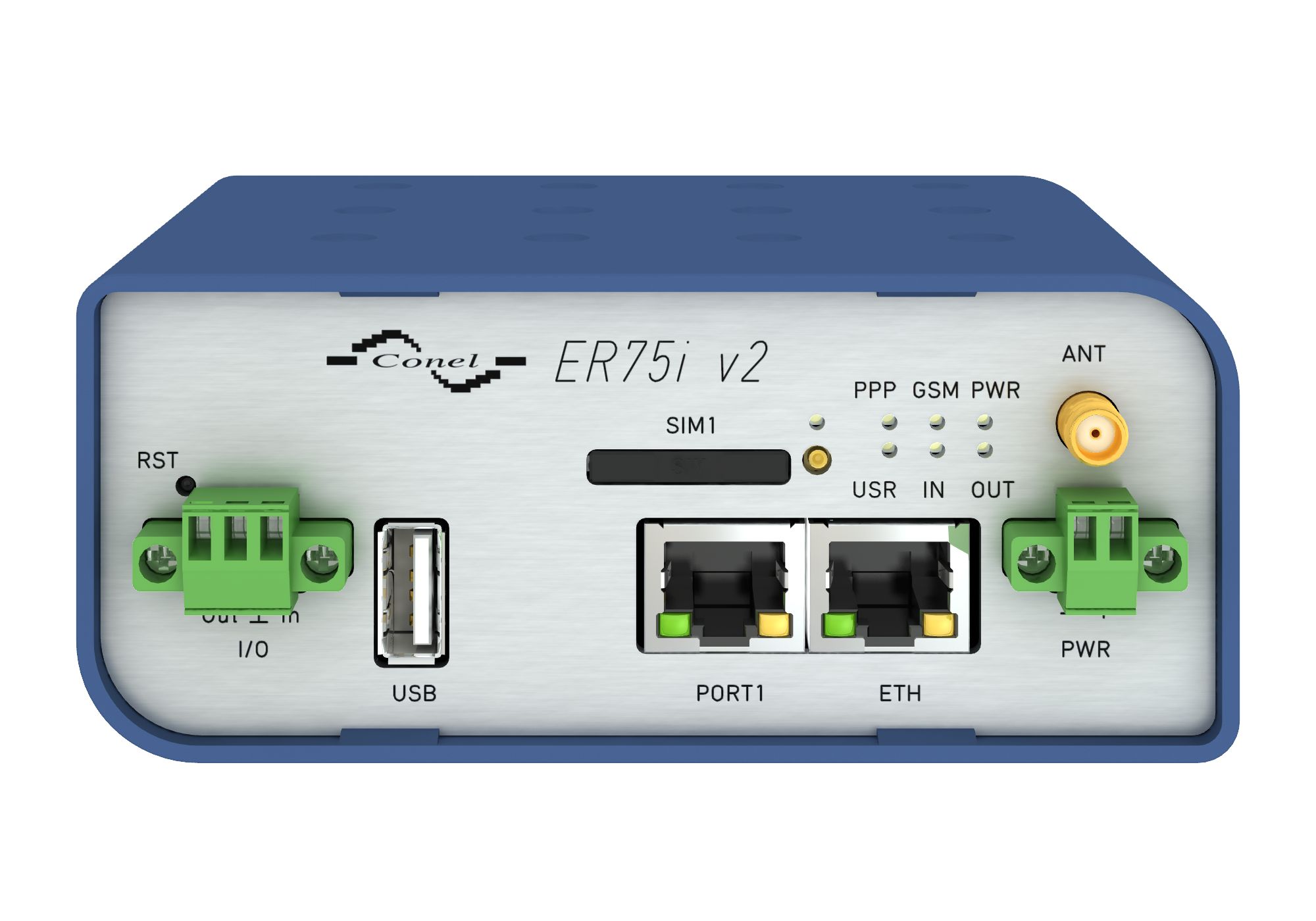

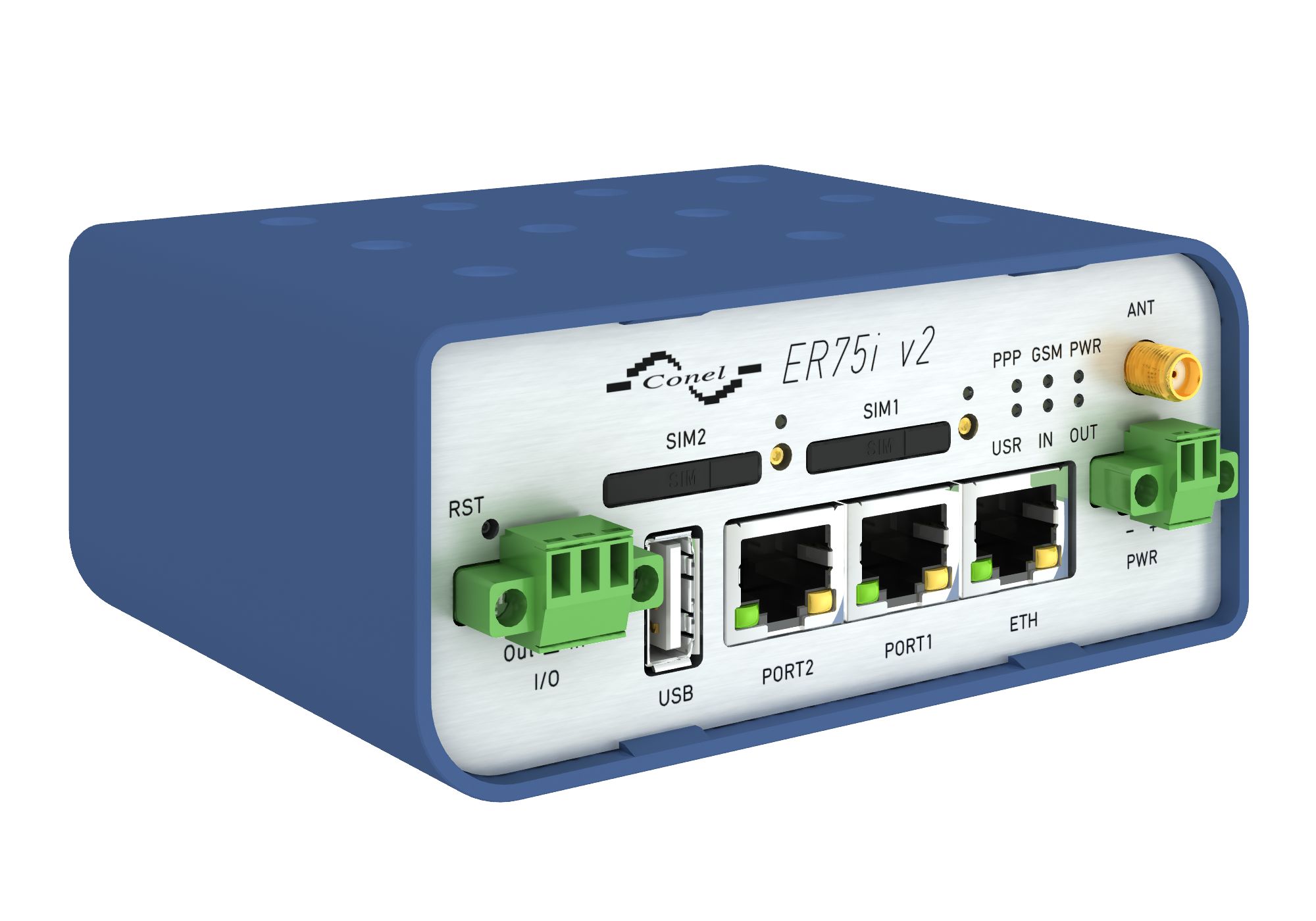

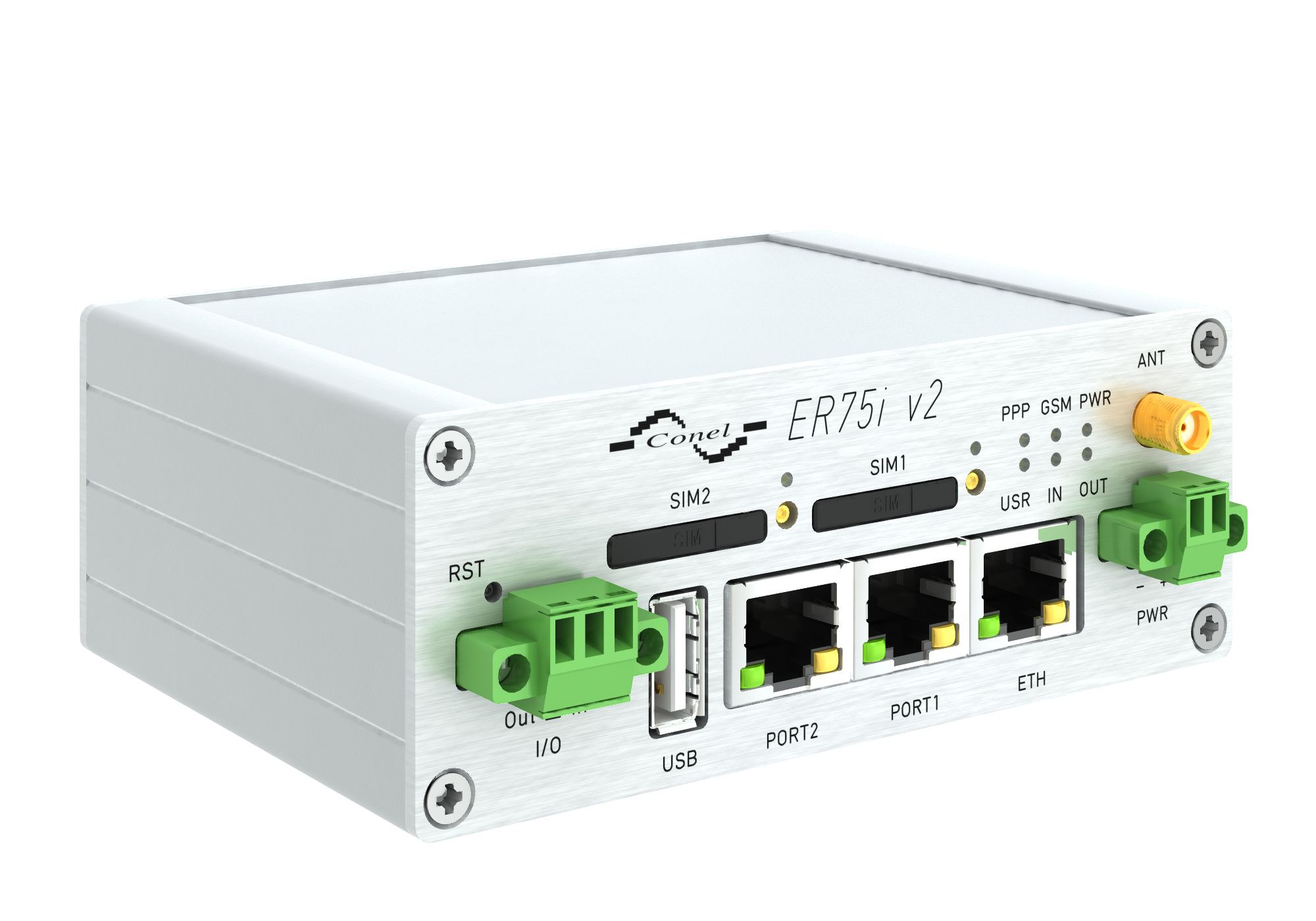

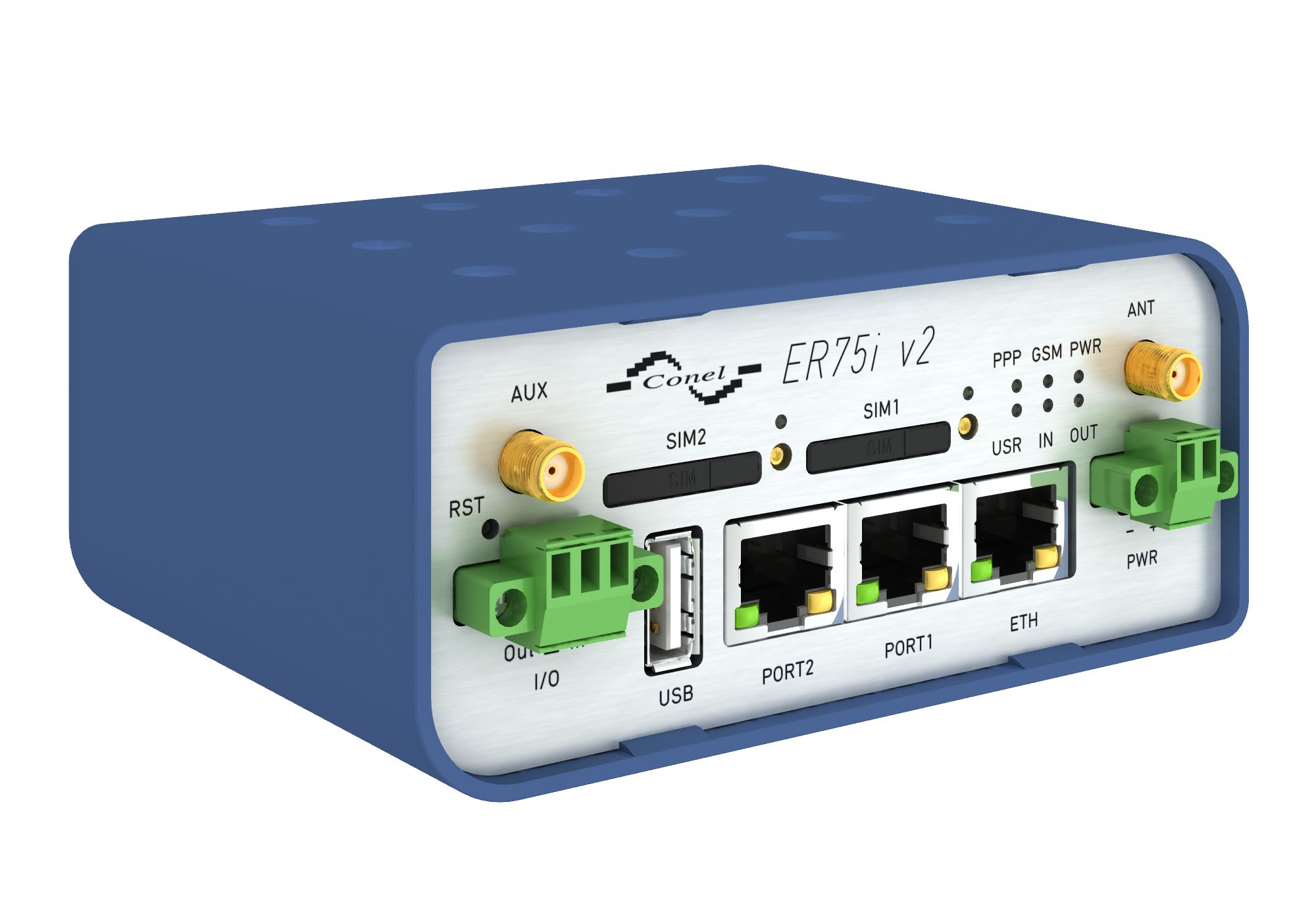

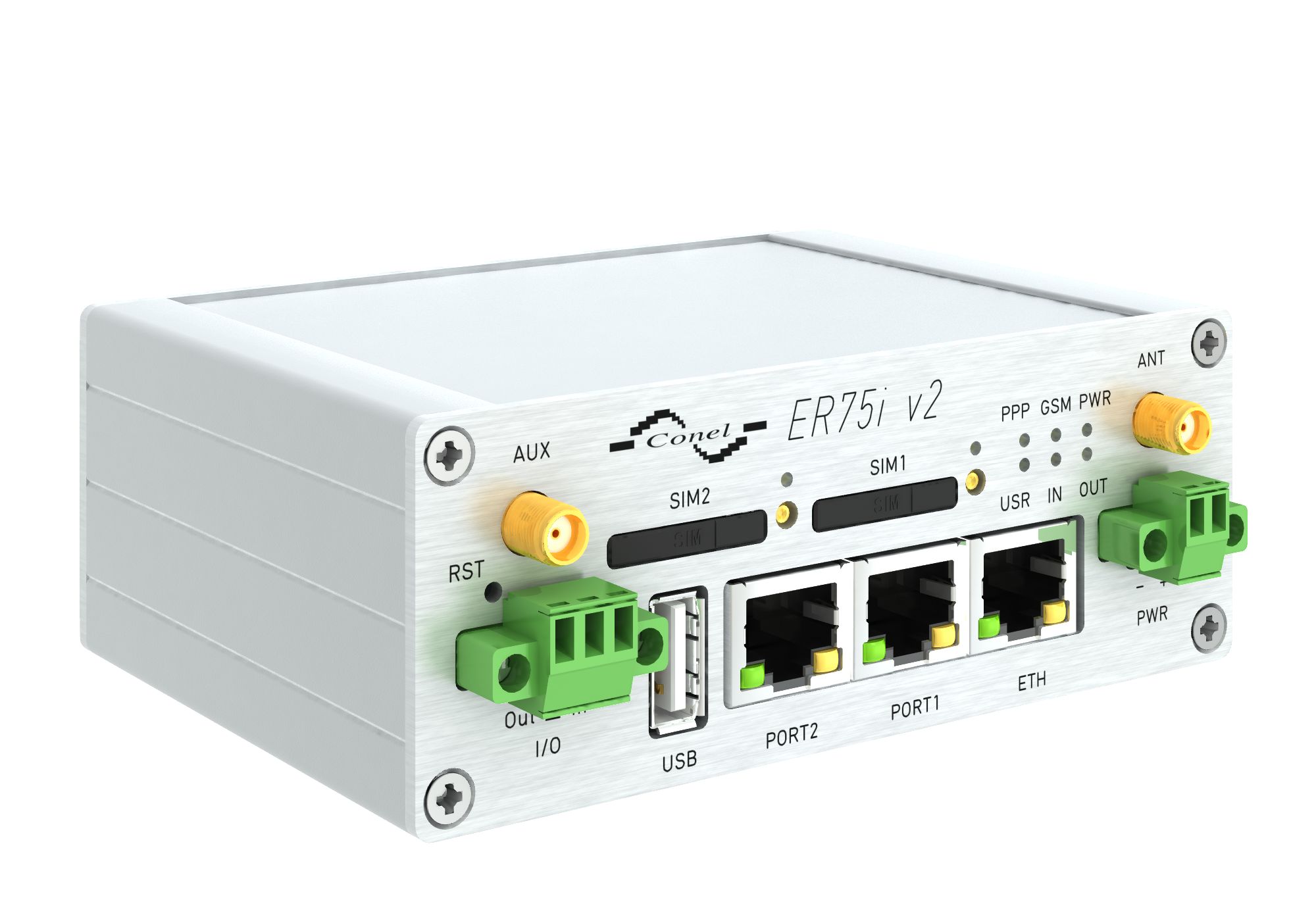

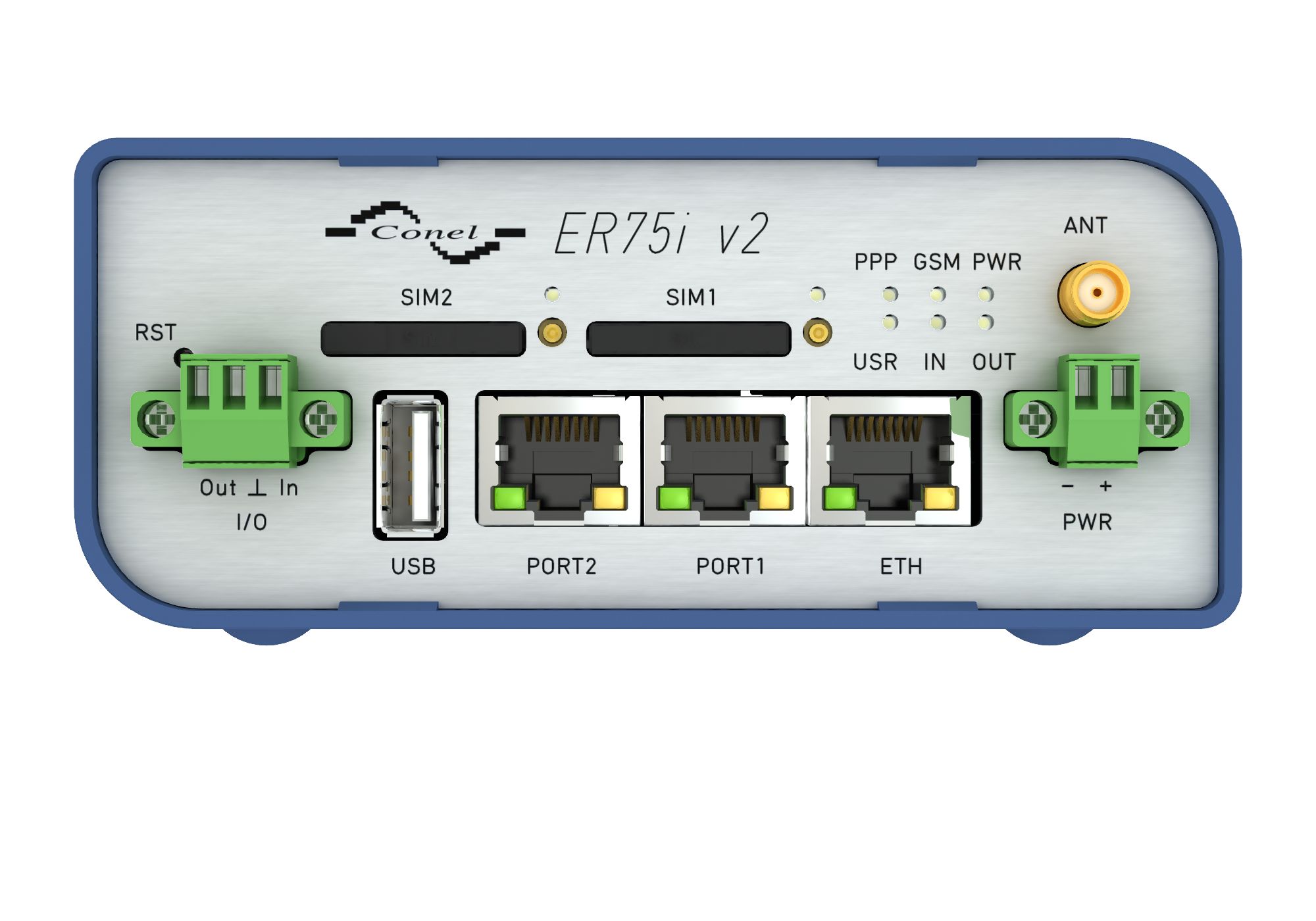

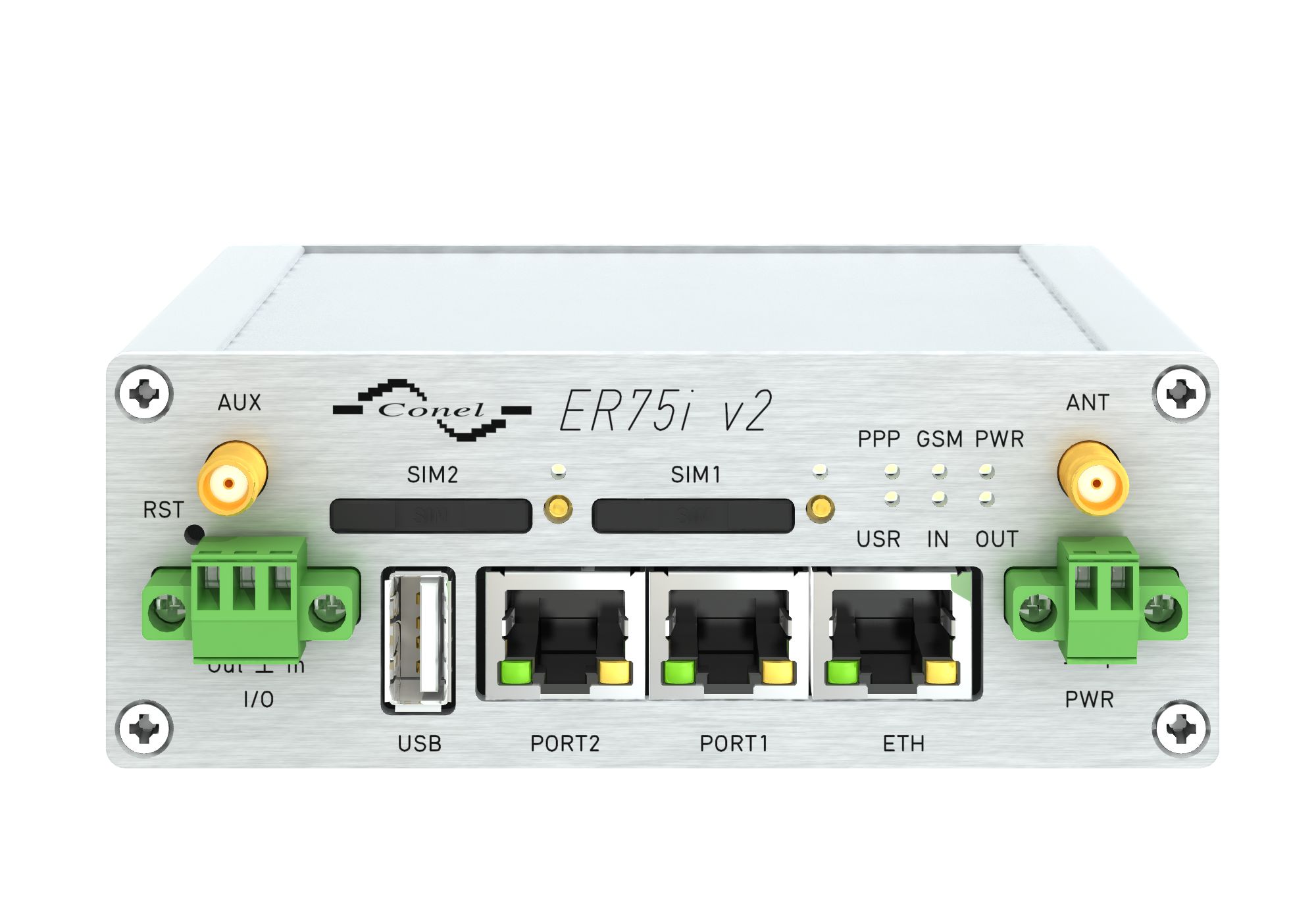

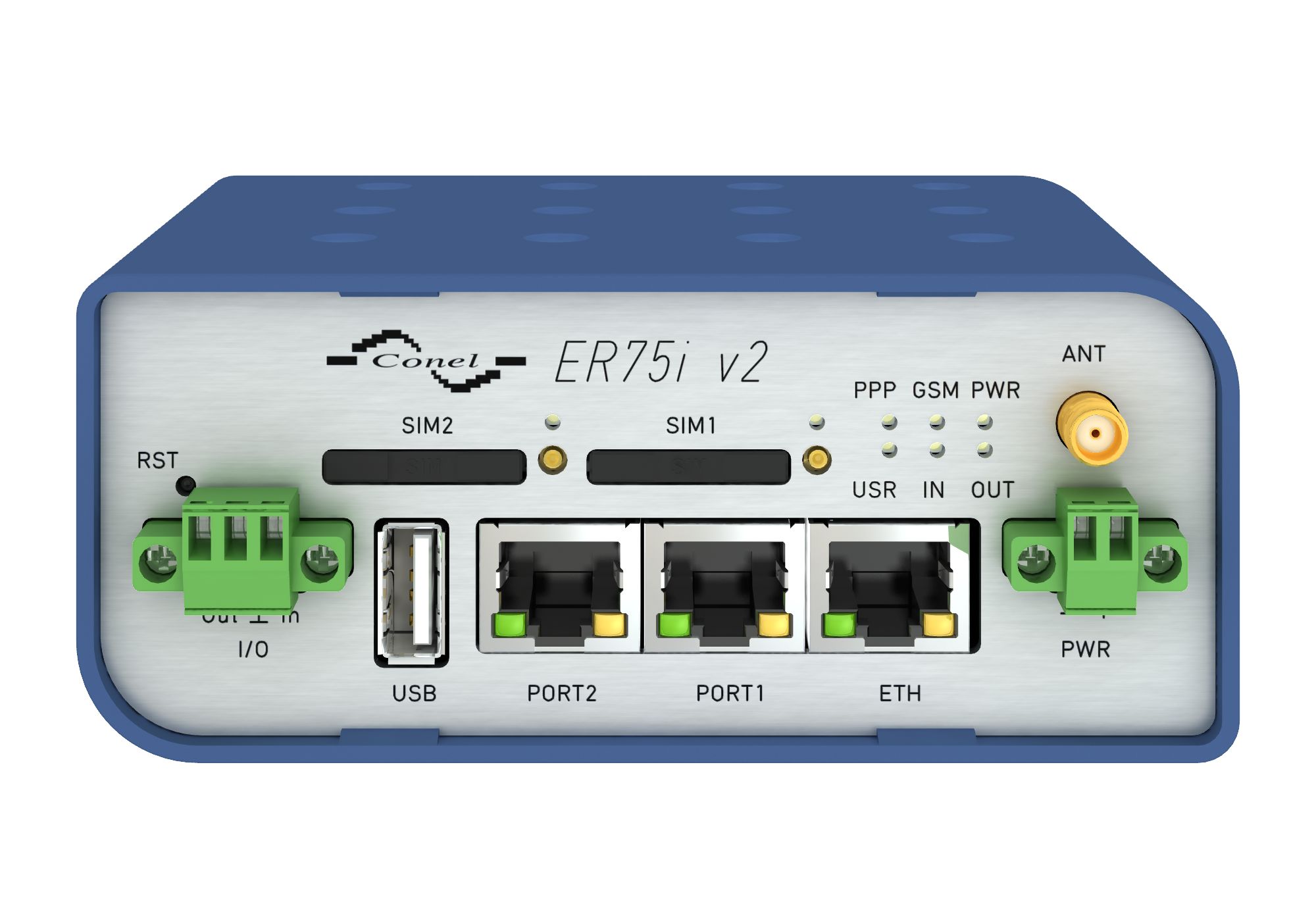

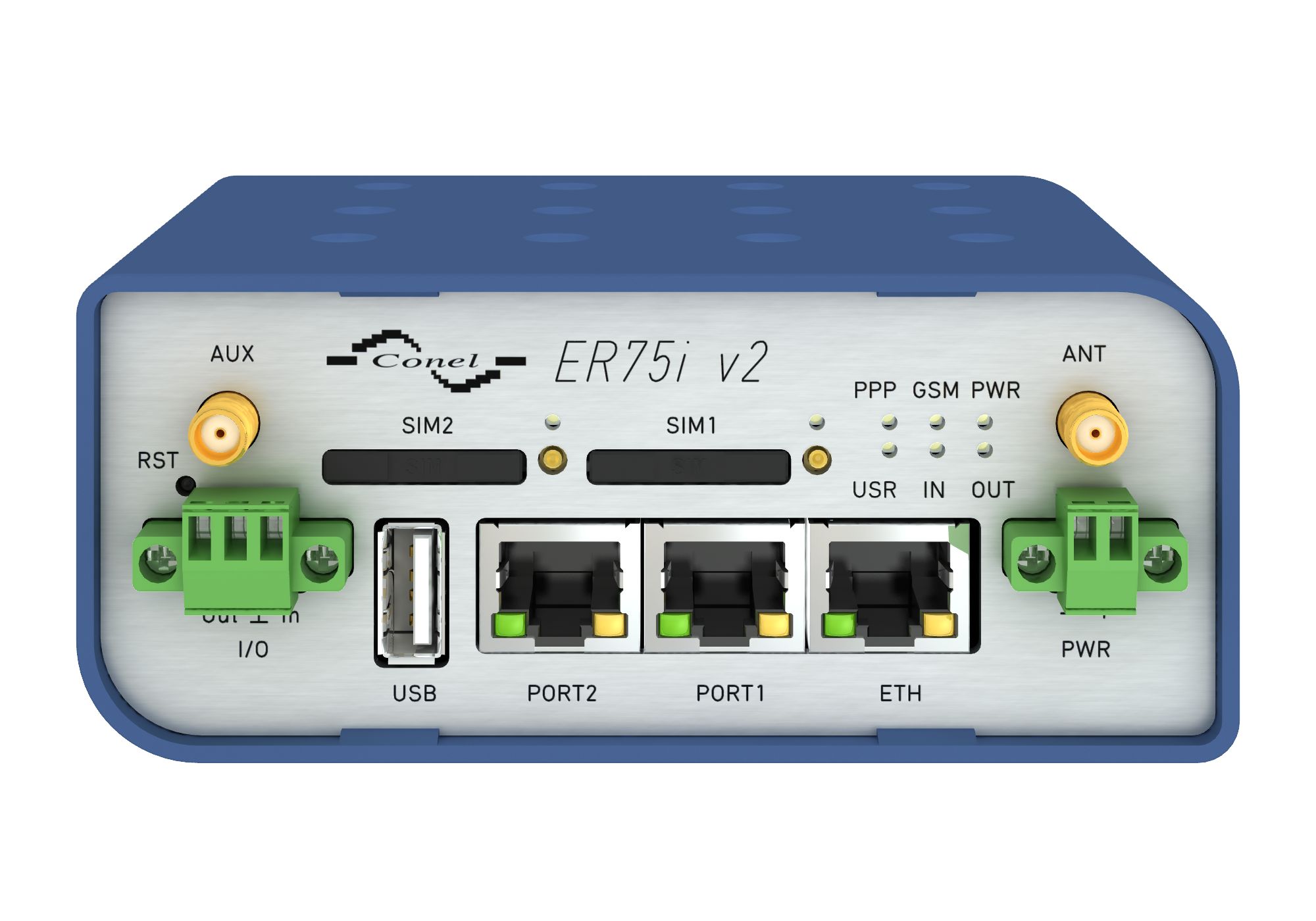

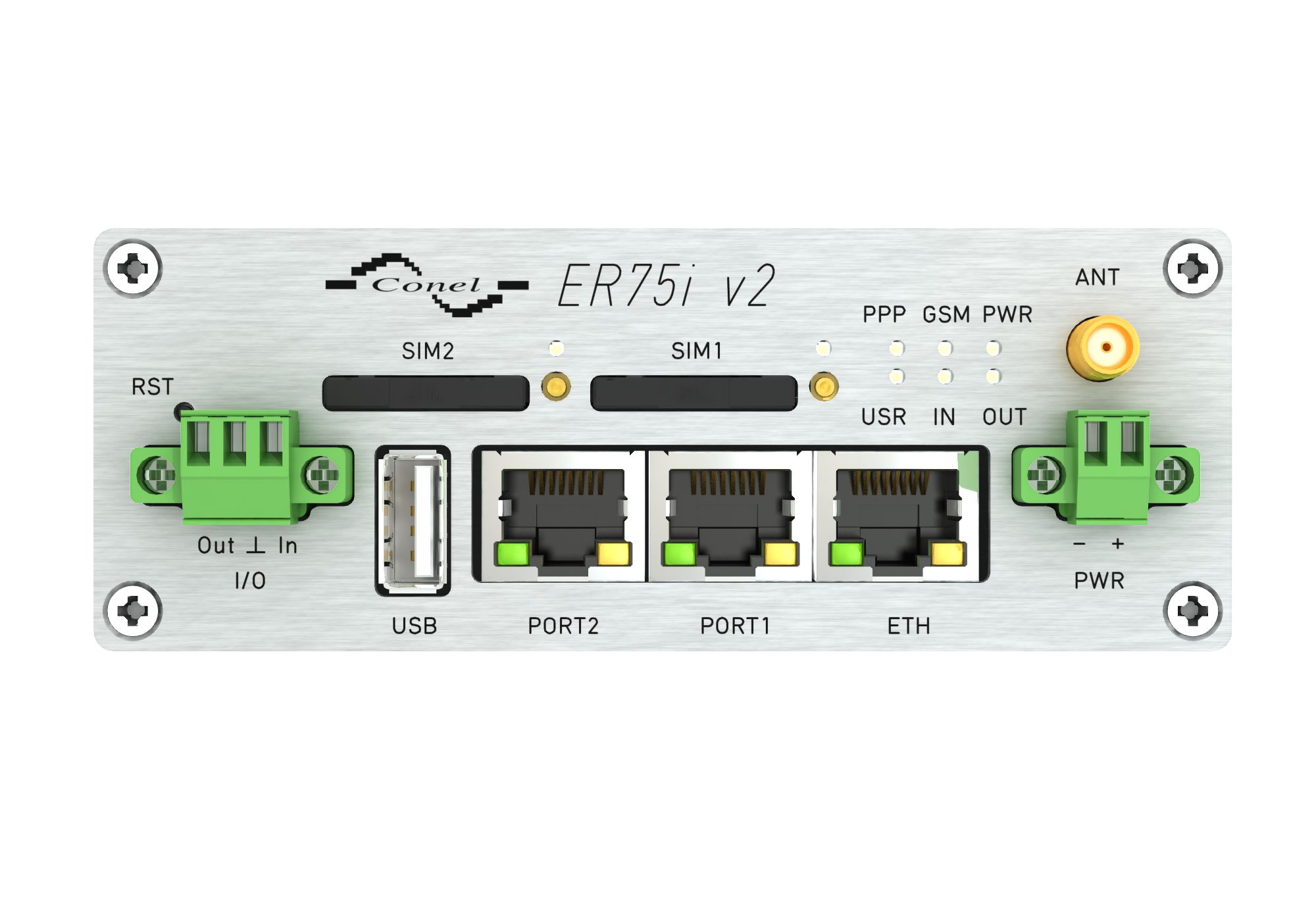

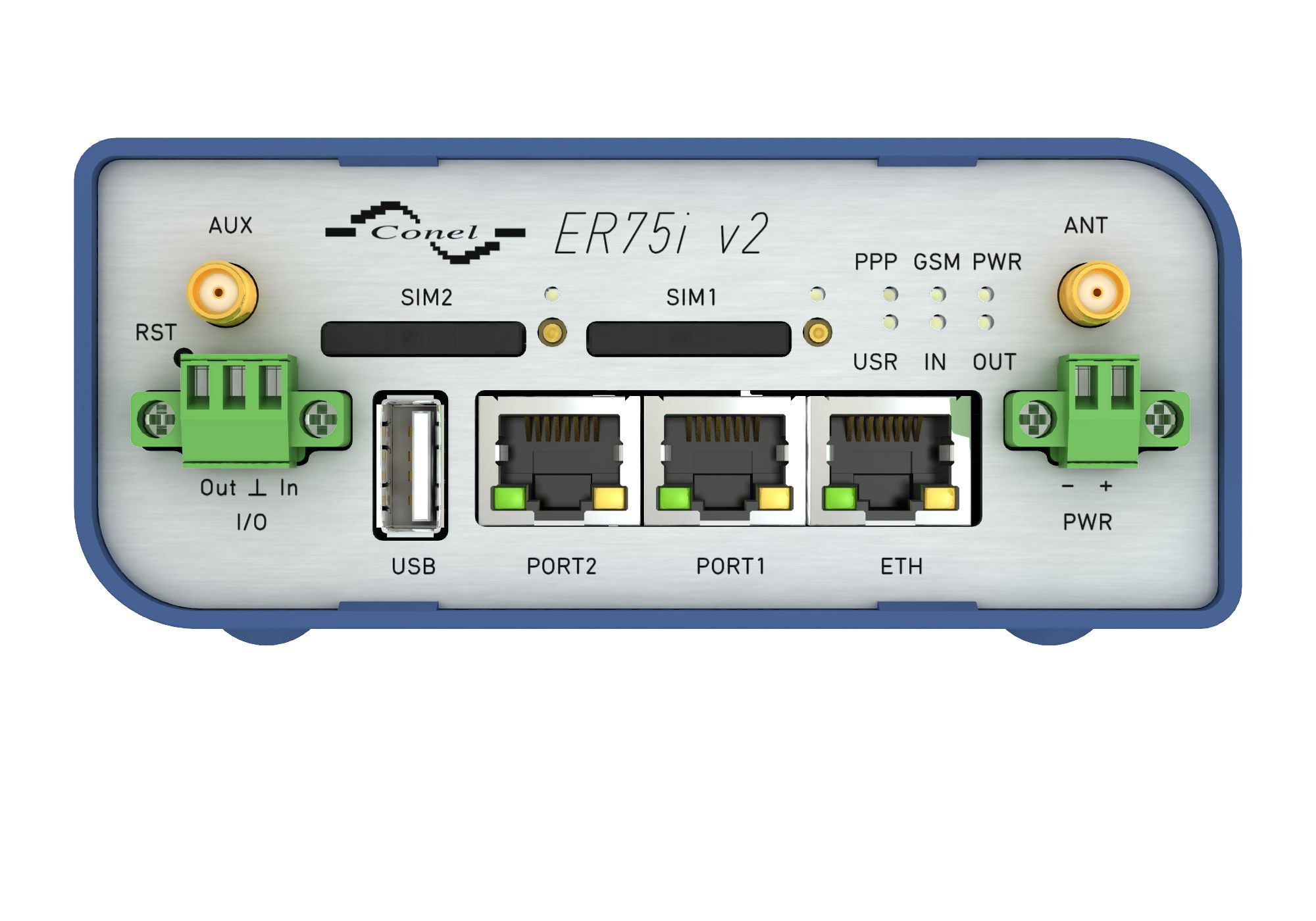

(I/O – CNT). Both of ports can be fitted with internal switch (exp. port SWITCH). This wire-
less router is supplied either in a plastic or metal casing, based on the requirements of the
customer.
